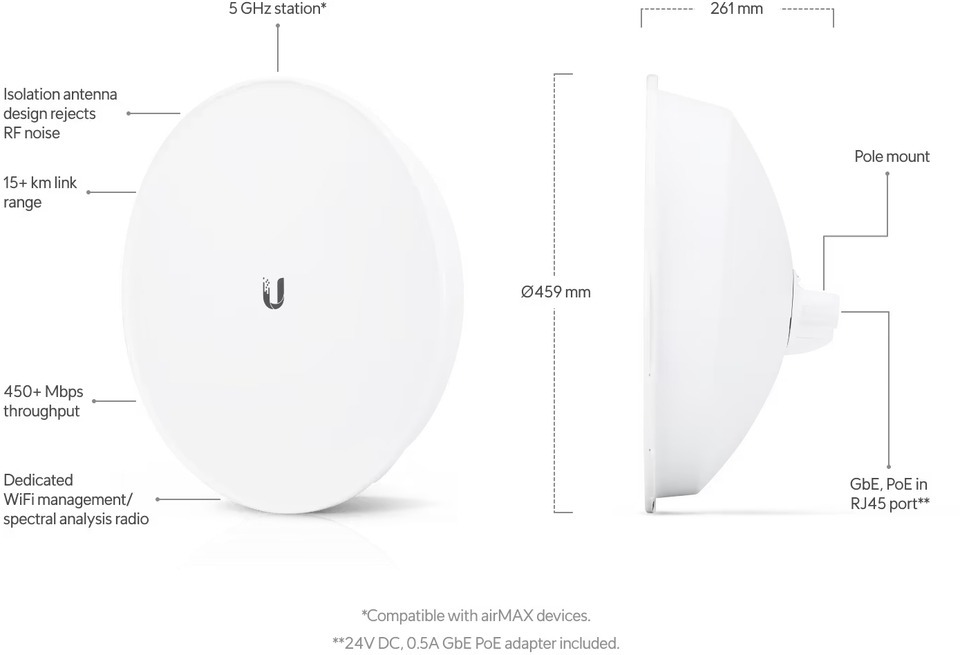

Ubiquiti PBE-5AC-ISO-Gen2 airMAX PowerBeam 5AC ISO
Web ID: 43162
5 GHz WiFi bridge with a 450+ Mbps real TCP/IP throughput rate and enhanced surge protection.
- 5 GHz, 15+ km link range
- 450+ Mbps throughput
- Isolation antenna design rejects RF noise
- Dedicated spectral analysis radio
- Dedicated WiFi management radio
Manufacturer Warranty: 2 Year
Manufacturer PN: PBE-5AC-ISO-Gen2
Manufacturer Website
$249
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230 mm (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lbs) |
| Enclosure material | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (Included) |
| Wind loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20—27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS |
| System | |
| Gain | 25 dBi |
| Channel sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA | 2412 - 2462 MHz |
