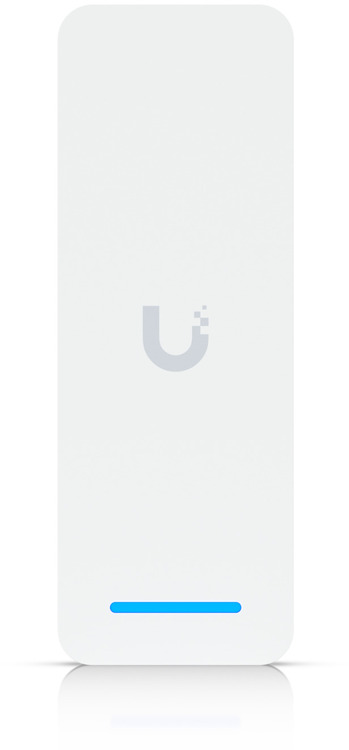

Ubiquiti UA-ULTRA Access Ultra Single-door Entry Control
Web ID: 42970

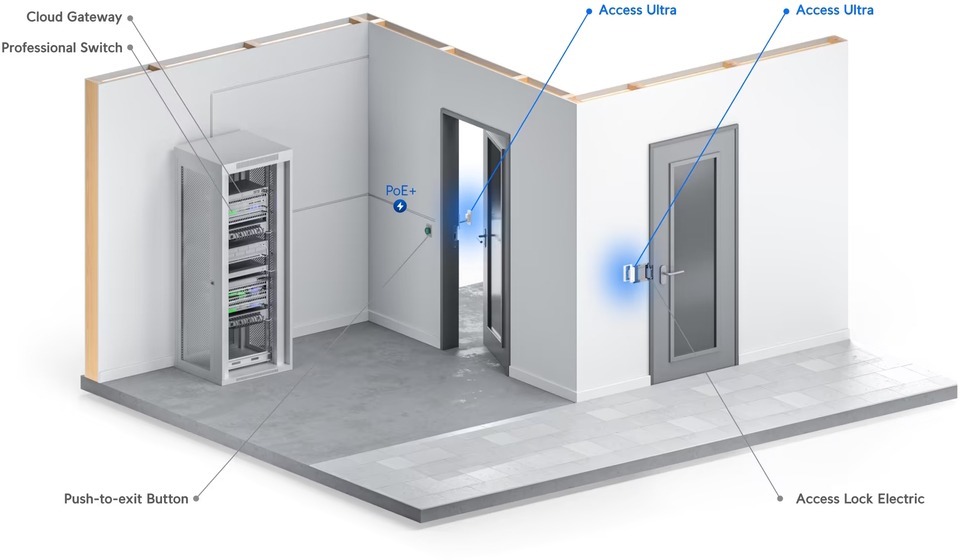

Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device.
- (1) Lock terminal (12V/1A)
- (1) Exit request input
- Unlock using an NFC card or UniFi Identity mobile app
- Connect and power using PoE+
- IP55 weather resistance (-30 to 40 C)
Manufacturer Warranty: 2 Year
Manufacturer PN: UA-Ultra
Manufacturer Website
$199
| Mechanical | |
|---|---|

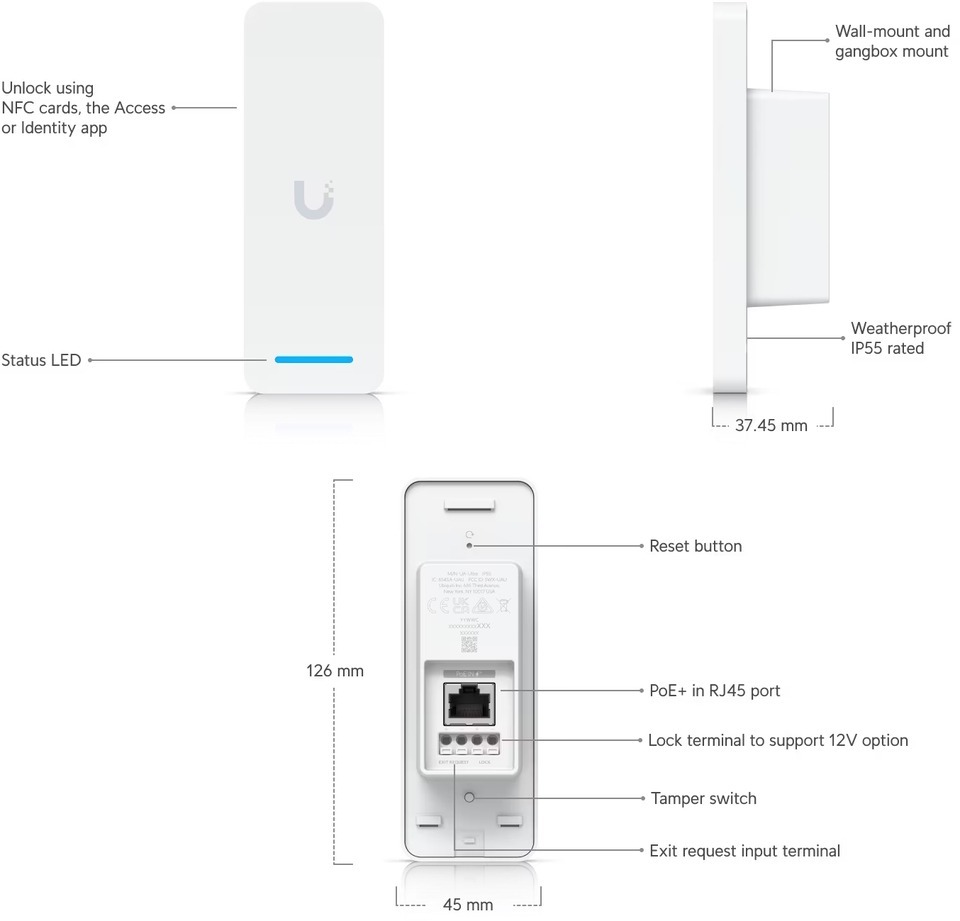

| Dimensions | 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5") |
| Weight | 140 g (4.9 oz) |
| Enclosure material | Polycarbonate, aluminum alloy |

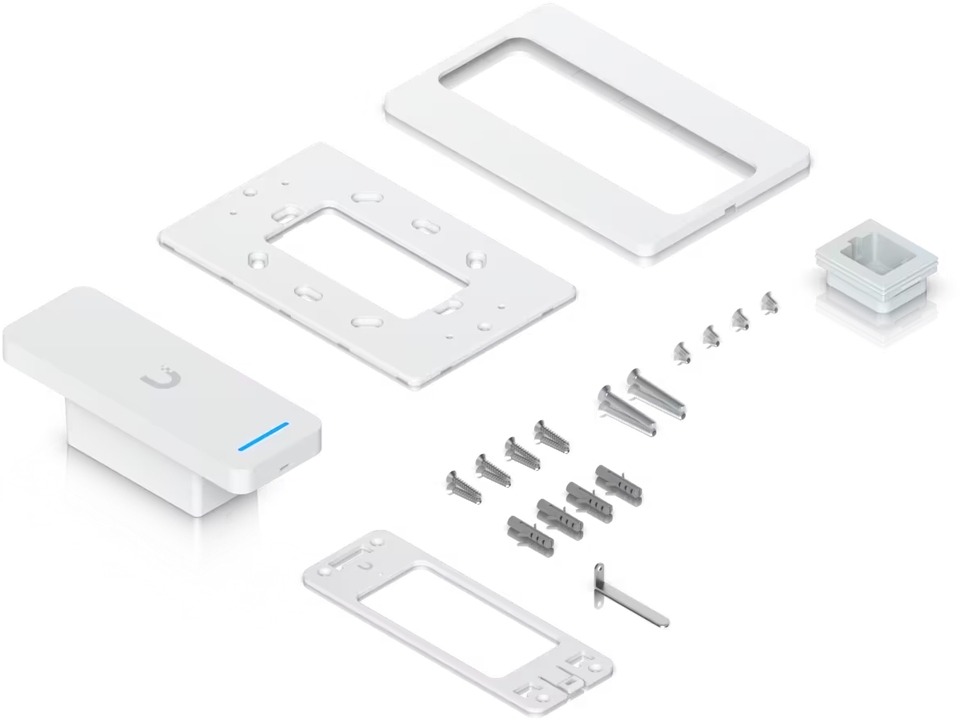

| Mounting | Wall mount, gang box mount |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | 10/100 MbE RJ45 port |
| Connectivity | Ethernet BLE 4.2 |
| Digital input | (1) Exit request |
| Lock terminals | (1) 12V, 1A |
| Power method | PoE+ |
| Max. power consumption | 18W |
| ESD/EMP protection | Air: ±8kV, contact: ± 4kV |
| LEDs | Steady white: Pending adoption Steady blue: Adopted Alternating white/blue: Firmware updating Strobing red: Emergency lockdown Steady green: Emergency evacuation (2) Rapid flashing blue: NFC credential authenticated (2) Rapid flashing red: NFC credential authentication failed Breathing blue: Ready to register NFC cards |
| Button | (1) Factory reset |
| Tamper switch | Yes |
| Speaker | Buzzer |
| NFC frequency | 13.56 Mhz |
| NFC read range | < 50 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire |
| Ambient operating temperature | -30 to 40° C (-22 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
