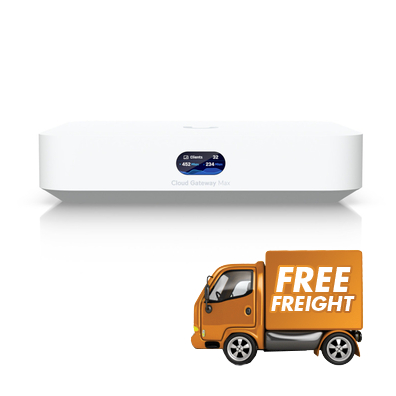

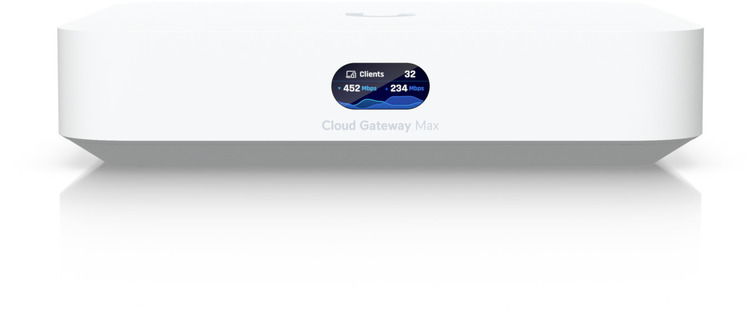

Ubiquiti UCG-MAX UniFi Cloud Gateway Max Router
Web ID: 42847
Type: Router
LAN Speed: 1 Gigabit || 2.5 Gigabit
Connection Type: Wired
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: UCG-Max
Manufacturer Website
$599
| Mechanical | |
|---|---|

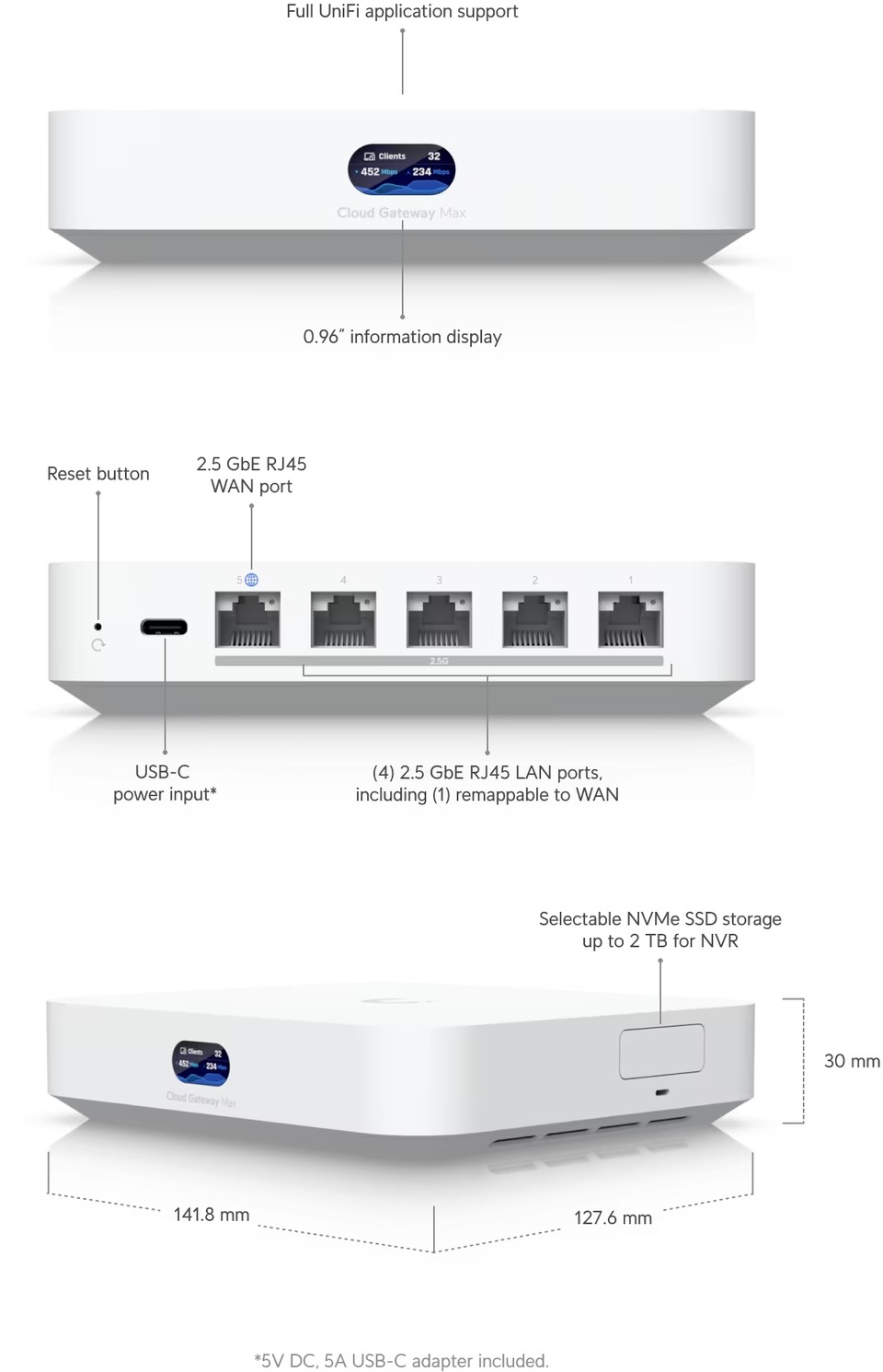

| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 519 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| On-board storage | 512 GB NVMe SSD |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) 1/2.5 GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
| IDS/IPS throughput | 1.5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | USB type C (5V DC/5A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 16.1W |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| Application Requirements | |
| Mobile app | UniFi iOS™ and Android™: Version 10.17.2 and later |
