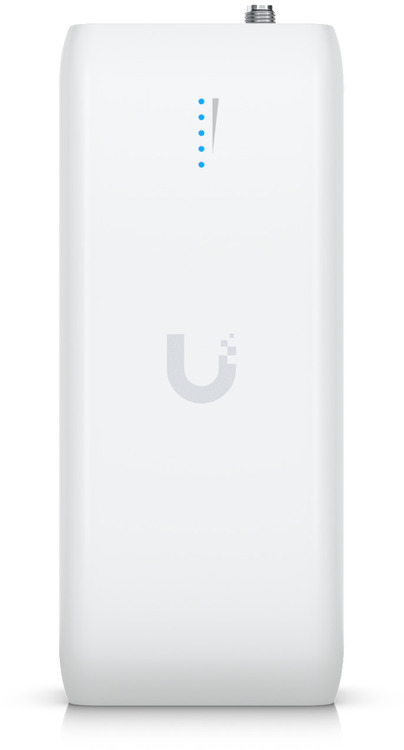

Ubiquiti UDB Device Bridge Wireless PoE Adapter
Web ID: 43643
Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
- (1) GbE LAN port that provides up to 15W of PoE
- 5 GHz band with up to 867 Mbps throughput rate

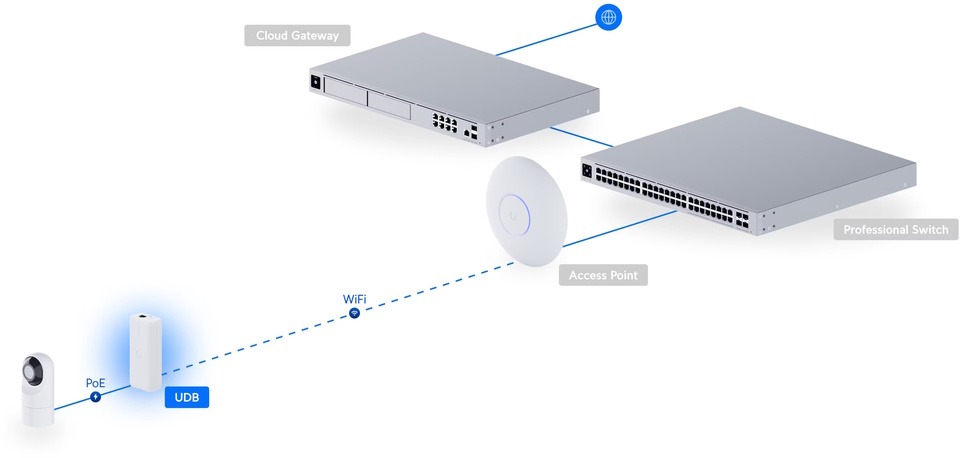

- Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Manufacturer Warranty: 1 Year
Manufacturer PN: UDB
Manufacturer Website
$239
| Mechanical | |
|---|---|

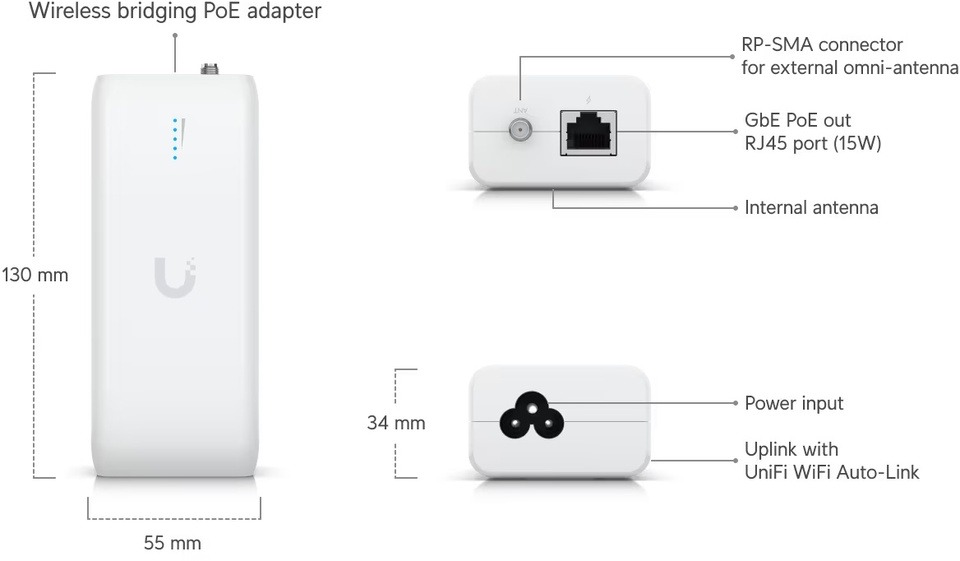

| Dimensions | 130 x 55 x 34 mm (5.1 x 2.2 x 1.3") |
| Weight | 200 g (7.1 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate |
| Hardware | |
| Management interface | WiFi |
| Networking interface | (1) GbE RJ45 port |
| PoE interface | (1) Passive PoE output |
| Button | (1) Factory-reset |
| LED | (4) Blue: signal (1) White/blue: indicator |
| Power method | 100—240V AC, 0.45A Max., 50/60 Hz |
| Max. power consumption | AC input: 25W Excluding PoE output: 10W |
| Max. PoE wattage per port | 15W |
| Supported voltage range | 100—240V AC |
| WiFi standards | 802.11a/n/ac |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
– 21 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz |
– 2 x 2 – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
– 866.7 Mbps (BW80) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
– Internal antenna : 5 dBi / External omni antenna : 4 dBi – |
| Antenna | (1) Internal antenna (1) RP-SMA connector for external omni-antenna |

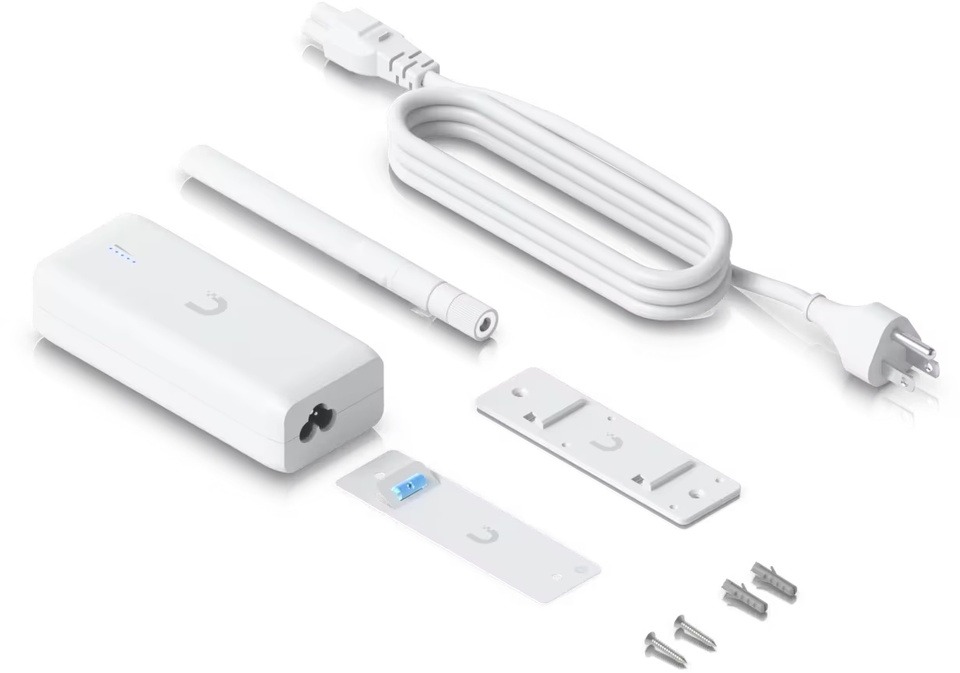

| Mounting | Wall (Included) |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
