Ubiquiti UF-Instant Fiber Instant Compact CPE with SFP Interface
Web ID: 43311
Compact GPON customer-premises equipment (CPE) with a 1G SFP interface.
- (1) GPON port
- (1) GbE direct SFP cage connect
Manufacturer Warranty: 2 Year
Manufacturer PN: UF-Instant
Manufacturer Website
$79

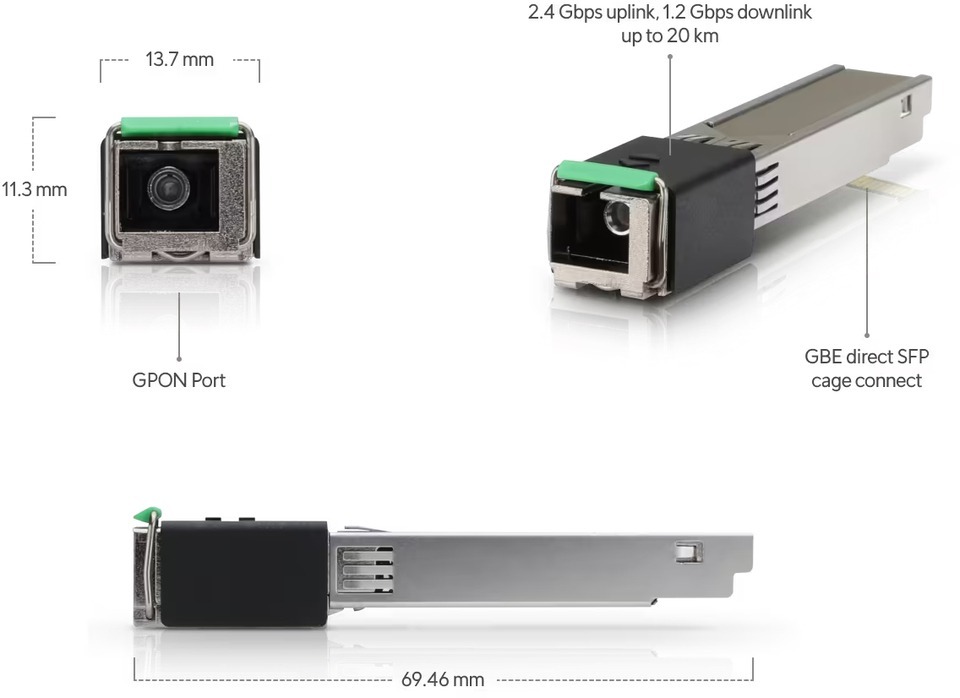

| Mechanical | |
|---|---|
| Dimensions | 69.5 x 13.7 x 11.3 mm (2.7 x 0.5 x 0.5") |
| Weight | 30 g (1 oz) |
| Enclosure materials | Zinc alloy, stainless steel |
| Hardware | |
| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN (1) SGMI, Ethernet LAN |
| Management interface | Ethernet In-Band PON |
| Power method | SFP |
| Supported voltage range | 3.3V |
| Max. power consumption | 2W |
| Total non-blocking line rate Downstream Upstream |
2.488 Gbps 1.244 Gbps |
| Normal range of optical module TX RX |
0.5 to 5 dBm -8 to -28 dBm |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Fiber | |
| Operating wavelength TX RX |
1310 nm 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate Downstream Upstream |
2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
