Ubiquiti UF-Nano Fiber Nano GPON CPE with LED Display
Web ID: 43323

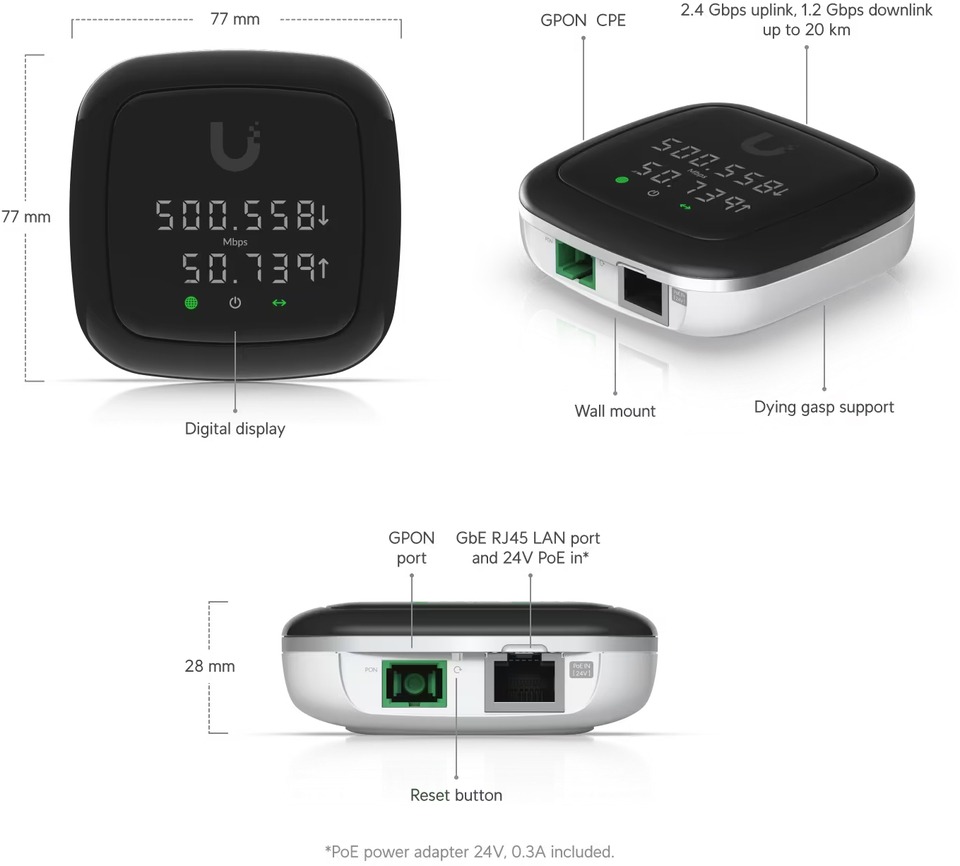

GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
- (1) GPON port
- (1) GbE RJ45 LAN port and 24V PoE in

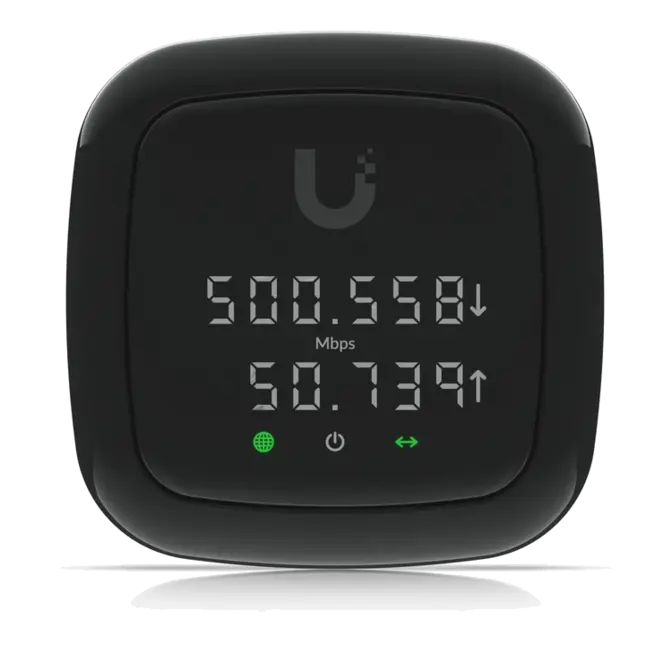

- (1) Digital display
- Dying gasp support
Manufacturer Warranty: 2 Year
Manufacturer PN: UF-Nano
Manufacturer Website
$139
| Mechanical | |
|---|---|
| Dimensions | 77 x 77 x 28 mm (3 x 3 x 1.1") |
| Weight | 110 g (3.9 oz) |
| Enclosure material | UV-stabilized polycarbonate (PC110U) |
| Hardware | |
| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN port (1) GbE RJ45 LAN ports |
| Management interface | Ethernet In-Band PON |
| Power method | 24V Passive PoE (Pins 4, 5+; 7, 8-), 0.3A |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 20–28V DC |
| Max. power consumption | 7W |
| Total non-blocking line rate Downstream Upstream |
2.488 Gbps 1.244 Gbps |
| Normal range of optical module TX RX |
1.5 to 5 dBm -8 to -28 dBm |
| Button | (1) Factory reset (1) Information |
| Ambient operating temperature | -40 to 55° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| LEDs | |
| PON status | (1) Steady white: powered up (1) Blinking white: activity (1) OFF: link down (1) Red: no optical receive power, loss of signal |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UISP Mobile App |
| Fiber | |
| Operating wavelength TX RX |
1310 nm 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate Downstream Upstream |
2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
