Ubiquiti UF-WiFi6 Fiber WiFi 6 GPON CPE with WiFi-6 Router
Web ID: 43333
GPON customer-premises equipment (CPE) with WiFi6 support.
- (1) GPON port
- Integrated 4-port GbE switch
- Integrated WiFi 6
Manufacturer Warranty: 2 Year
Manufacturer PN: UF-WiFi6
Manufacturer Website
$199

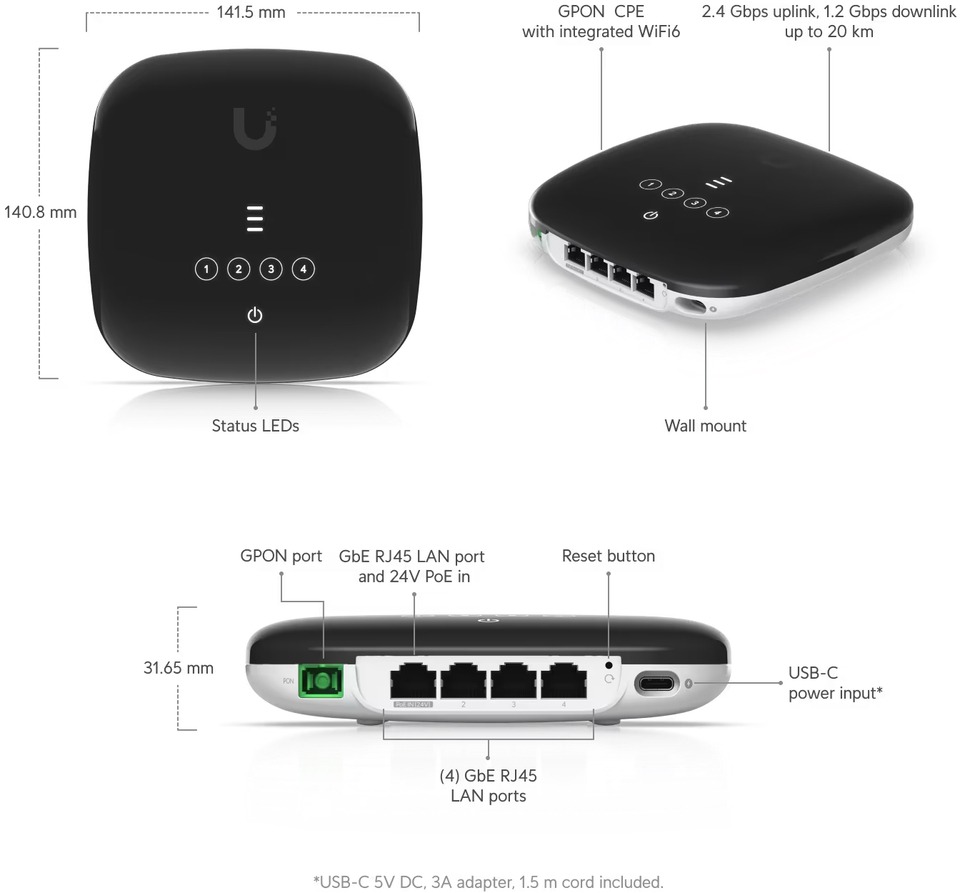

| Mechanical | |
|---|---|
| Dimensions | 140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3") |
| Weight | 415 g (14.6 oz) |
| Enclosure material | UV-stabilized polycarbonate (PC110U) |
| Hardware | |
| Networking interface | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels |
| Management interface | Ethernet In-Band PON |
| Power method | USB-C 5V DC, 3A 24V passive PoE, 0.5A |
| Power supply | 5V DC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 10–30V DC (passive PoE) 5V DC (adapter) |
| Max. power consumption | 11W |
| Total non-blocking line rate Downstream Upstream |
2.488 Gbps 1.244 Gbps |
| Normal range of optical module TX RX |
0.5 to 5 dBm -8 to -28 dBm |
| Max. WiFi TX power 2.4 GHz 5 GHz |
20 dBm 20 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 2 x 2 |
| Max. WiFi radio rate 2.4 GHz 5 GHz |
300 Mbps 1.2 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
1 dBi 3 dBi |
| Button | (1) Factory reset |
| Ambient operating temperature | -15 to 45° C (5 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| LEDs | |
| PON status | (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x orange + 2x white: signal too strong (>= -8 db) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: No authority |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UISP Mobile App |
| WiFi standards | 802.11 b/g/n/ac/ax |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Fiber | |
| Operating wavelength TX RX |
1310 nm 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate Downstream Upstream |
2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
| Supported Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (WiFi 6) | 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
