Ubiquiti UISP-Dish PtP Antenna
Web ID: 43170
Point-to-point (PtP) dish antenna that covers a wide operating frequency range.
- Frequency range: 5.15, 6.875 GHz
- 30+ km PtP link range
- Precision mounting bracket for easy installation and alignment
Manufacturer Warranty: 2 Year
Manufacturer PN: UISP-Dish
Manufacturer Website
$509
| Mechanical | |
|---|---|

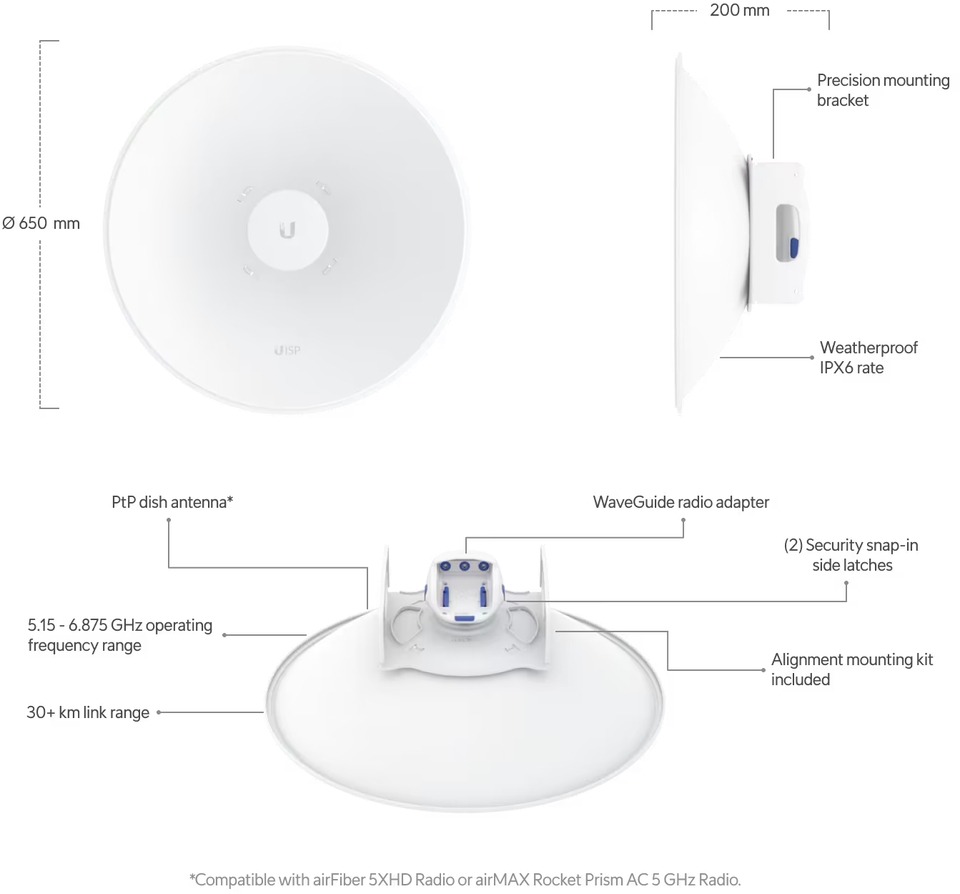

| Dimensions | ? 650 x 200 mm (? 25.6 x 7.9") |
| Weight | Device: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb) |
| Enclosure materials | Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind loading | 860 N at 200 km/h |
| Mounting | Alignment mounting kit (included) Mechanical adjustment: ?15? elevation Pole compatibility: ?40 to 90mm (?1.57 to 3.5") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 30 dBi |
| Beamwidth | Azimuth: 5 to 6? (3 dB) / 6.5 to 8? (6 dB) Elevation: 5 to 6? (3 dB) / 6.5 to 8? (6 dB) |
| Electrical downtilt | 0? |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
