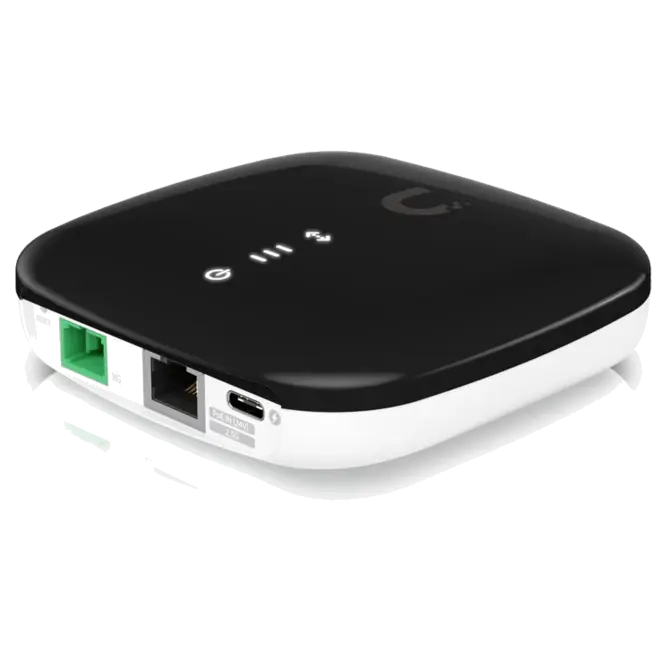

Ubiquiti UISP-FIBER-XG Optical Network Unit
Web ID: 43335
An optical network unit that can deliver 2.5 Gbps uplink/10 Gbps downlink speeds over distances up to 20 km.
- (1) XG-PON port
- (1) 2.5GbE RJ45 LAN port and 24V PoE in
Manufacturer Warranty: 2 Year
Manufacturer PN: UISP-FIBER-XG
Manufacturer Website
$219
| Mechanical | |
|---|---|
| Dimensions | 100 x 100 x 27 mm (3.9 x 3.9 x 1.1") |
| Weight | 220 g (0.49 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Hardware | |
| Networking interface | (1) SC/APC, ITU-G.987 XGPON WAN port (1) 100/1,000/2,500 MbE RJ45 LAN ports |
| Management interface | Ethernet in-band PON |
| PoE interface | (1) PoE in, 24V DC passive PoE |
| Memory | 256 MB DDR |
| Onboard flash storage | 32 MB NOR |
| Max. power consumption | 6W |
| Power method | USB-C 5V DC, 3A 24V DC passive PoE |
| Power supply | 5V DC, 3A power adapter Passive PoE 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 5V DC adapter 10–30V DC passive PoE |
| Total non-blocking line rate | Downstream: 9.95 Gbit/s Upstream: 2.44 Gbit/s |
| Normal TX range of optical module | 2 to 7dBm |
| Normal RX range of optical module | -9 to -27dBm |
| Button | (1) Factory reset |
| Ambient operating temperature | -15 to 45° C (5 to 113° F) |
| Ambient operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Fiber | |
| Operating wavelength | TX: 1,270nm RX: 1,577nm |
| Line code | Scrambled NRZ |
| Physical reach | 20 km |
| LEDs | |
| Power | White: ON |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| PON status | (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -27 dbm) 1x white: signal low (>= -27 dbm) 2x white: signal good (>= -24 dbm) 3x white: signal strong (>= -12 dbm) 1x orange + 2x white: signal too strong (>= -9 dbm) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: no authority |
