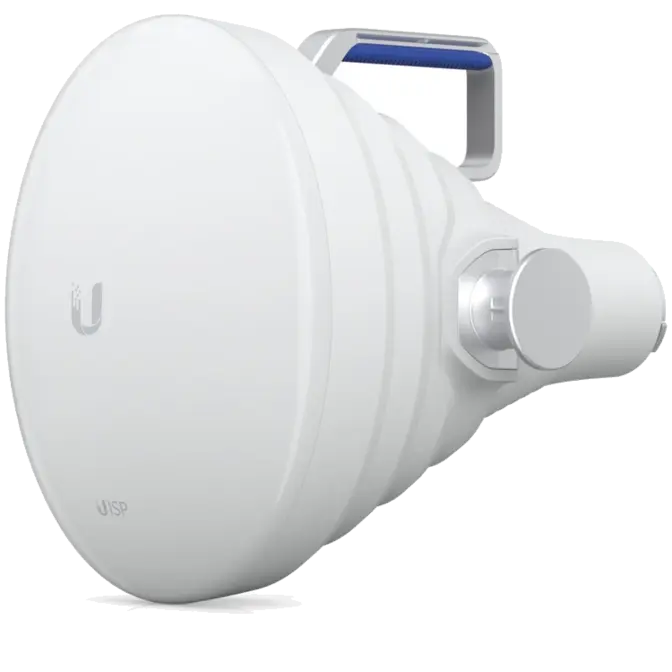

Ubiquiti UISP-Horn High Isolation PtMP Antenna
Web ID: 43171
High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15, 6.875 GHz).
- High-isolation 30 horn antenna that covers a wide operating frequency range (5.15, 6.875 GHz)
- 15+ km PtMP link range
- Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

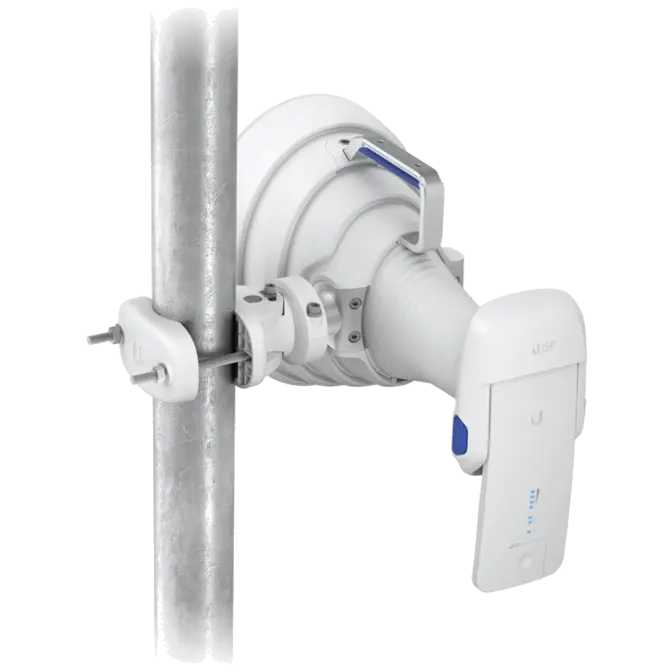

- Pole-mountable antenna with a metal carrying handle
- Compatible with AF 5XHD, RP 5AC, LTU Rocket
Manufacturer Warranty: 2 Year
Manufacturer PN: UISP-Horn
Manufacturer Website
$559
| Mechanical | |
|---|---|

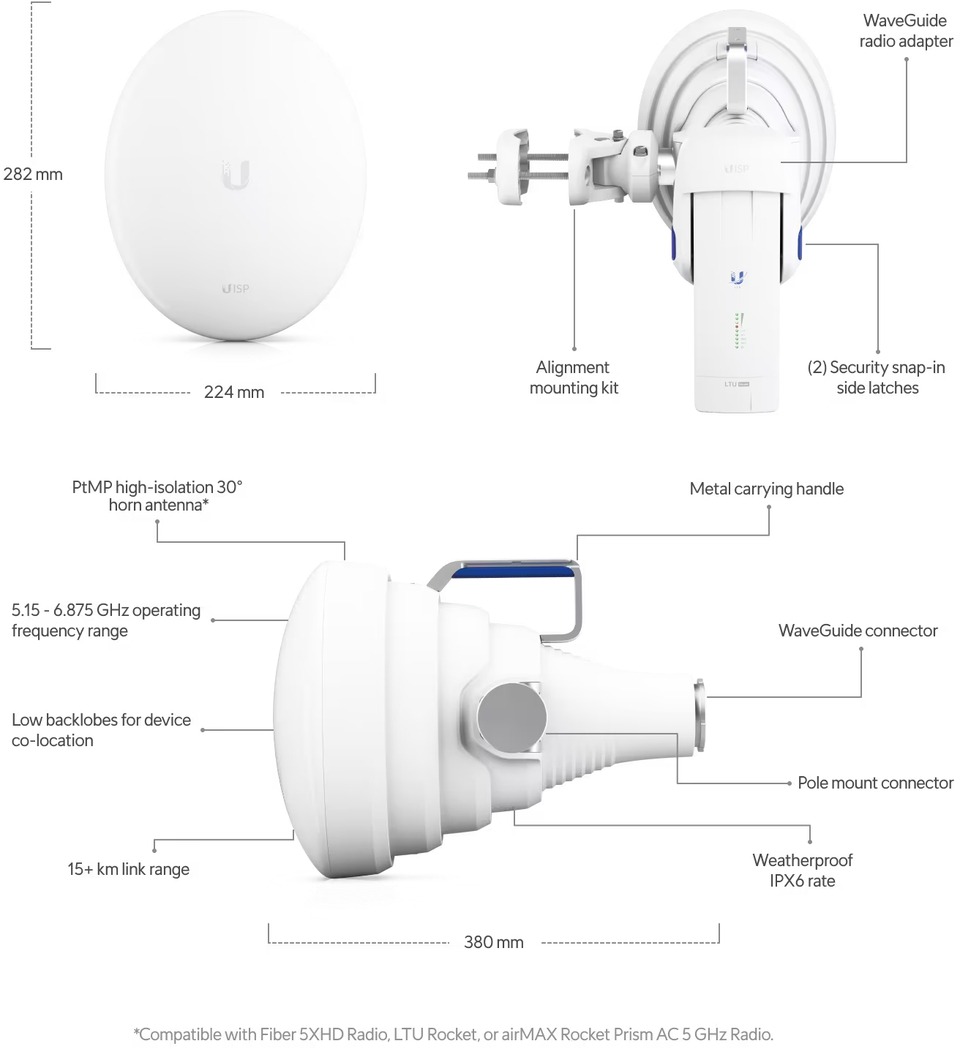

| Dimensions | 282 x 224 x 380 mm (11.1 x 8.8 x 15") |
| Weight | Device: 3.06 kg (6.75 lb) Mount: 925 g (2.04 lb) |
| Enclosure materials | UV stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind loading | 90 N at 200 km/h |
| Mounting | Alignment mounting kit (included) Mechanical adjustment: ±20° elevation, ±25° azimuth Pole compatibility: Ø25 to 70 mm (Ø1 to 3") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 19.5 dBi |
| Beamwidth | Azimuth: 30° (6 dB) Elevation: 25° (6 dB) |
| Electrical downtilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Front-to-back ratio | Typical: 45 to 50 dB Min.: 40 dB |
