Ubiquiti Unifi CK-Enterprise CloudKey Enterprise
Web ID: 42948

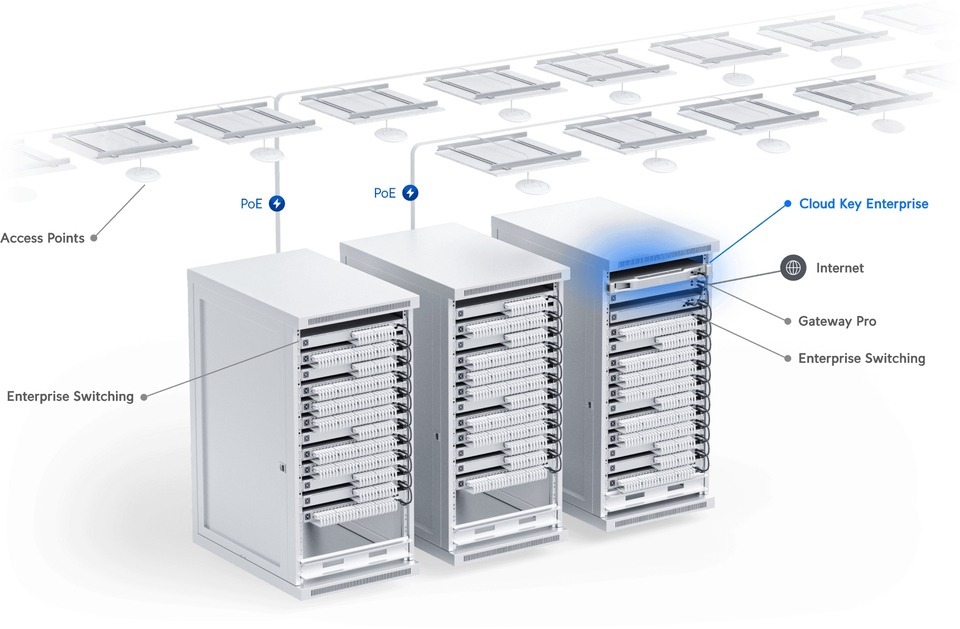

A UniFi Console designed for managing massive-scale UniFi Networks.
- Manage 1,000+ UniFi Network devices and 10,000+ clients
- (1) 10G SFP+ and (1) GbE RJ45 LAN port
- (2) 550W redundant power supply units (PSUs)
- Full 1U form factor
- Bluetooth for instant setup
Manufacturer Warranty: 2 Year
Manufacturer PN: CK-Enterprise
Manufacturer Website
$10119

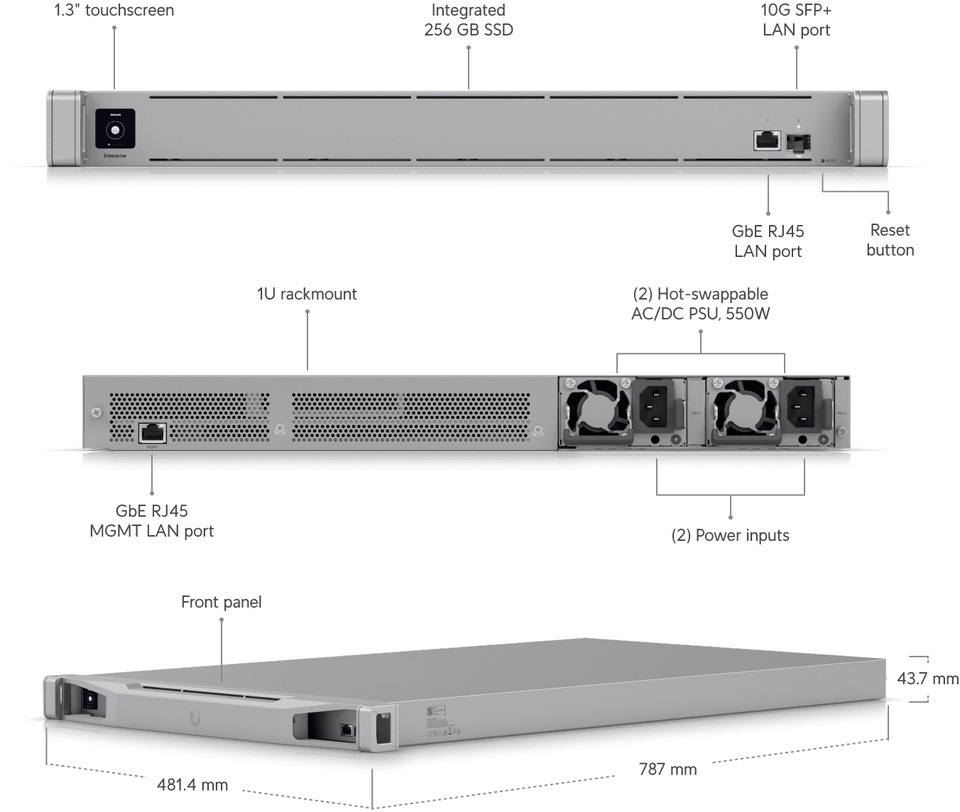

| Mechanical | |
|---|---|
| Dimensions | 787 x 43.7 x 481.4 mm (31 x 1.7 x 19") |
| Weight | 13.1 kg (28.9 lb) |
| Enclosure material | Front panel: aluminium Chassis: SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | 16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz |
| Memory | (2) 16 GB DDR4 ECC RDIMM |
| On-board storage | (1) 256 GB, M.2 2280 SATA |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (1) GbE RJ45 port (1) 10G SFP+ port MGMT LAN: (1) GbE RJ45 port |
| Power method | Universal AC input, 100—240V AC, 7A Max, 50/60 Hz |
| Power supply | (2) Hot-swappable AC/DC PSU, 550W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | 0 to 35° C (32 to 95° F) |
| Ambient operating humidity | 8 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | White: link/activity |
| SFP+ | White: link/activity |
| Power supply | Off: no AC power present Steady green: AC power and DC output active Flashing green: AC power present and DC output inactive Steady amber: AC power lost/failure events Flashing amber: warning events |
| Application Requirements | |
| UniFi Network | Version 7.3.83 and later |
