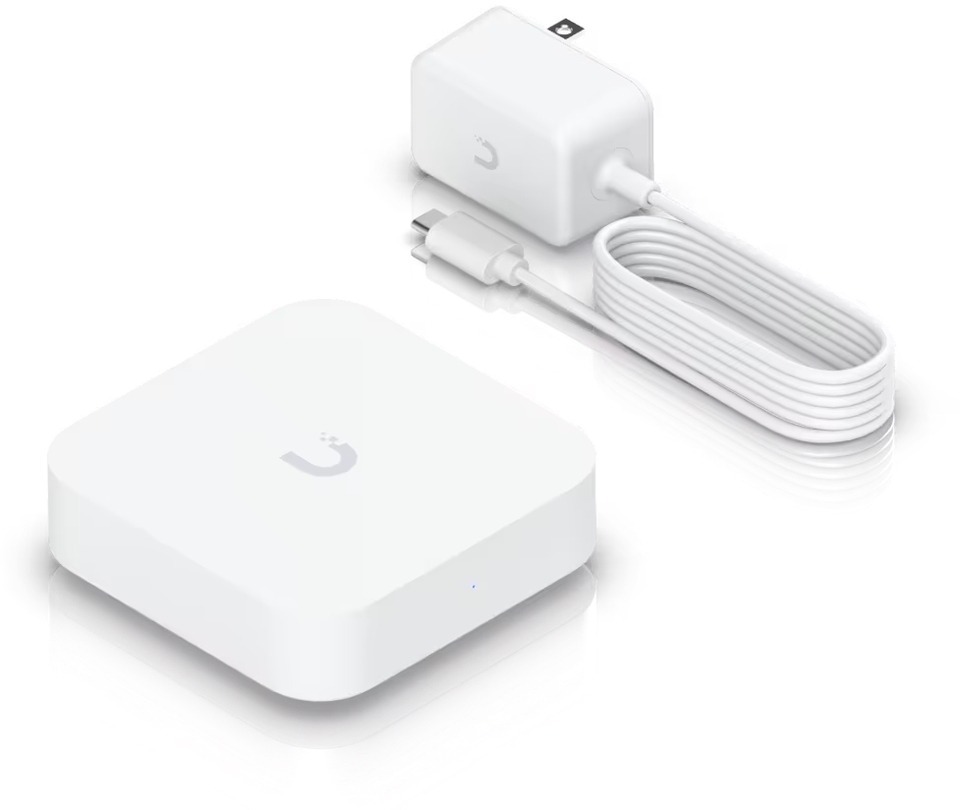

Ubiquiti UniFi UXG-Lite Gateway Lite Wired Router

Web ID: 42950

Compact independent gateway with a full suite of advanced routing and security features.

  • Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
  • Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later
  • (1) GbE WAN port
  • (1) GbE LAN port
  • Compact footprint
  • USB-C powered (adapter included)

Manufacturer Warranty: 2 Year
Manufacturer PN: UXG-LITE
GTIN: 810084692042
Manufacturer Website

$169SAVE $30

ubiquiti unifi uxg-lite gateway lite wired routerubiquiti unifi uxg-lite gateway lite wired routerubiquiti unifi uxg-lite gateway lite wired router

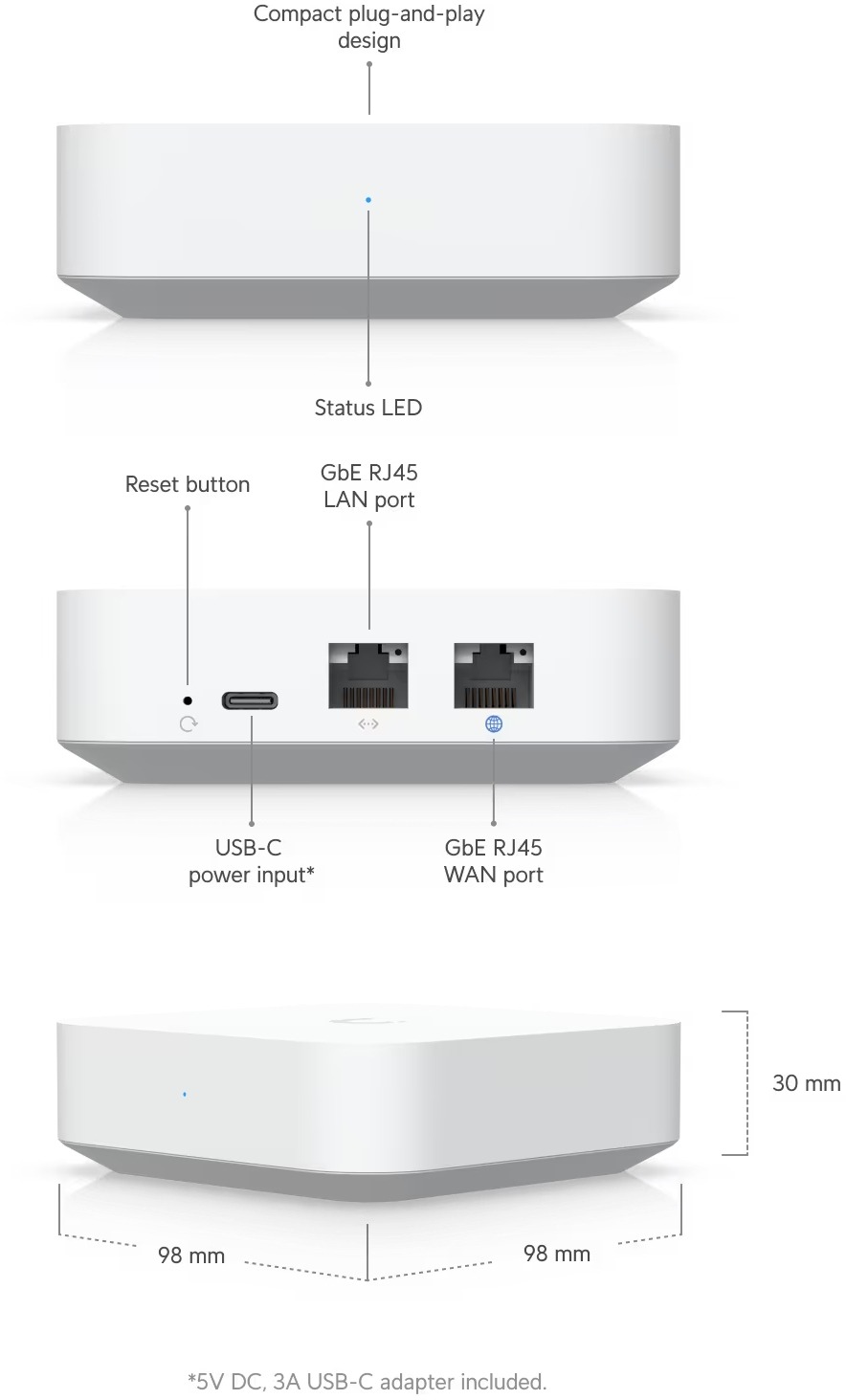

Mechanical
Dimensions 98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
Weight 320 g (11.3 oz)
Enclosure material Polycarbonate
Hardware
Processor Dual-core ARM® Cortex®-A53 at 1 GHz
Memory information 1 GB DDR3L
Management interface Ethernet
Bluetooth 5.1
Networking interface LAN:
(1) GbE RJ45 port

WAN:
(1) GbE RJ45 port
IDS/IPS throughput 1 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power method USB type C (5V/3A)
Supported voltage range 100–240V
Max. power consumption 3.83W
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support

*When paired with a CloudKey or Official UniFi Hosting.
**When paired with a CloudKey.
Application Requirements
UniFi Network Version 8.0.7 and later
