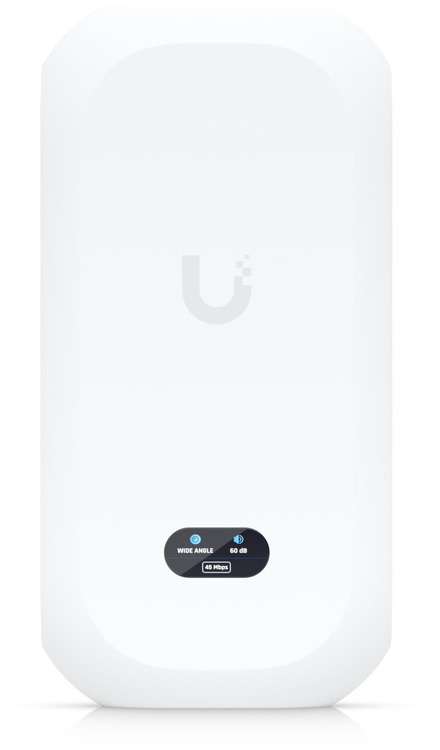

Ubiquiti UVC-AI-Theta-Hub Remote Processing Hub for AI Theta
Web ID: 43220

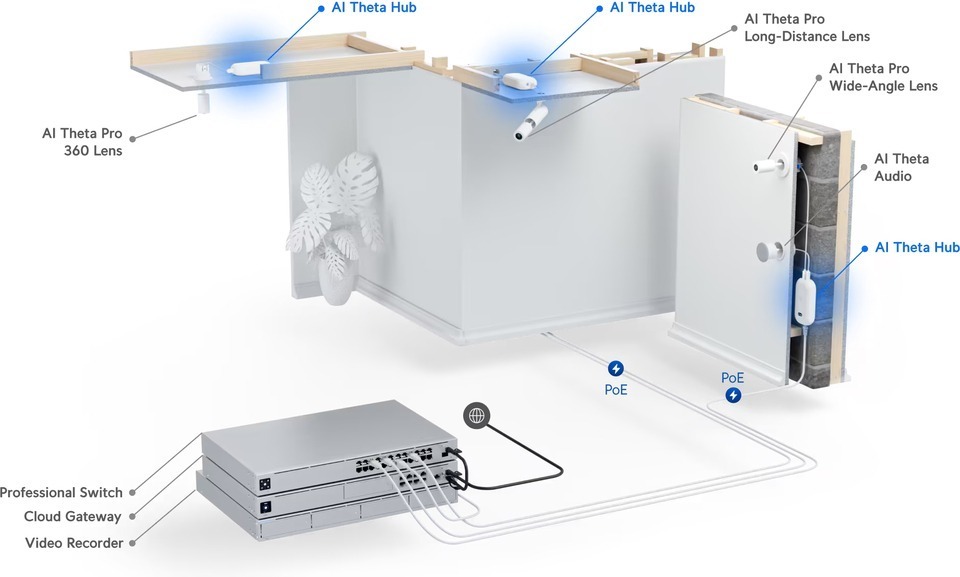

Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.
- (1) video and (1) audio port for connecting a lens and audio module

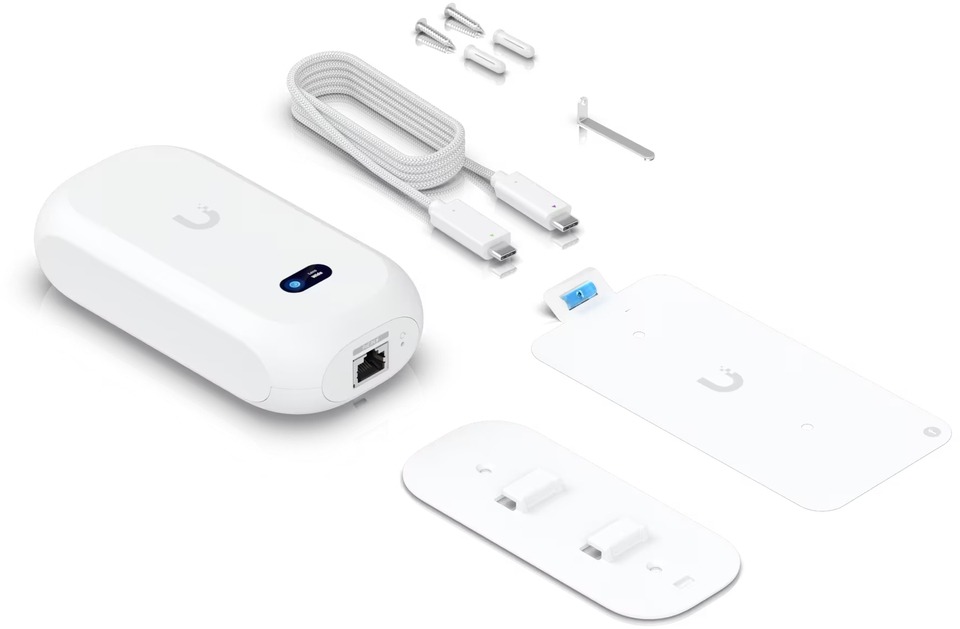

- Supports AI Theta Standard and Professional Lenses, with (1) included cable for connecting a lens
- Advanced AI: Detect people, read license plates, and more*
- 0.96" color display for device status and configuration
- Connect and power using PoE
- Supports optional AI Theta Audio module for two-way audio
Manufacturer Warranty: 2 Year
Manufacturer PN: UVC-AI-Theta-Hub
Manufacturer Website
$409
| Mechanical | |
|---|---|

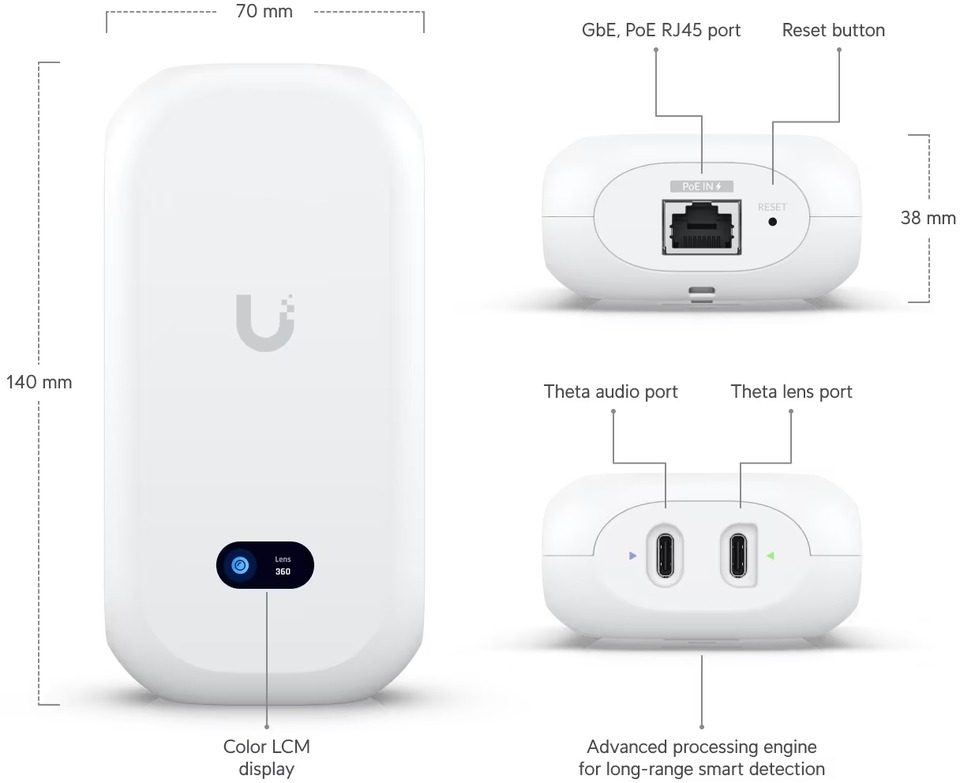

| Dimensions | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) |
| Enclosure material | Aluminum alloy |
| Mount material | Aluminum alloy |
| Video | |
| Video compression | H.264 |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Supported voltage range | 37—57V DC |
| Output power | 5V DC, 1A per port |
| Display | 0.96" color display |
| Button | Factory reset |

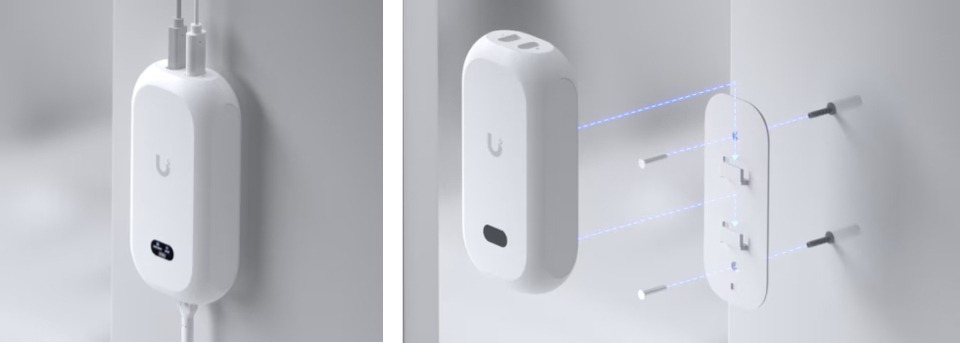

| Mounting | Wall, ceiling mount |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
