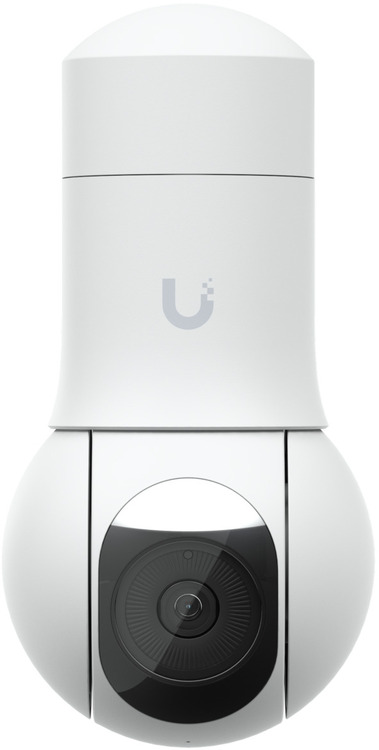

Ubiquiti UVC-G5-PTZ Unifi G5 PTZ All-Weather Network Camera
Web ID: 43044
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
- 2K (4MP) video resolution
- 2x optical zoom
- 20 m (65 ft) IR night vision
- AI event detections and automatic person tracking
- Record audio with an integrated microphone
- Integrated LED spotlight for color night vision
- Connect and power using PoE+
- Weatherproof (outdoor exposed)
Manufacturer Warranty: 2 Year
Manufacturer PN: UVC-G5-PTZ
Manufacturer Website
$569
| Mechanical | |
|---|---|
| Dimensions | Without mount: Ø90 x 152.5 mm (Ø3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
| Weight | Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Wall mount: polycarbonate Pole mount: aluminum alloy |
| Pole mount diameter | 38–50 mm (1.5–2") on pipe outer diameter |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Optics | |
| Sensor | 5MP 1/2.7" CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| View angle | 16:9 Wide: H: 99.7°, V: 51.9°, D: 121° 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Night mode | Built-in IR & white LED illumination with IR cut filter |
| IR distance | 20 m (65 ft) |
| IR limitation | Keep distance from top/side ≥60 cm (2 ft) |
| Video | |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| System | |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 14W |
| Power method | PoE+ |
| Supported voltage range | 37–57V DC |
| LEDs | R/G/B/W: link, activity Floodlight: 400 lm |
| Button | Factory reset |
| Mounting | Wall, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional, sold separately) |
| Ambient operating temperature | -30 to 45º C (-22 to 113º F) |
| Ambient operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
