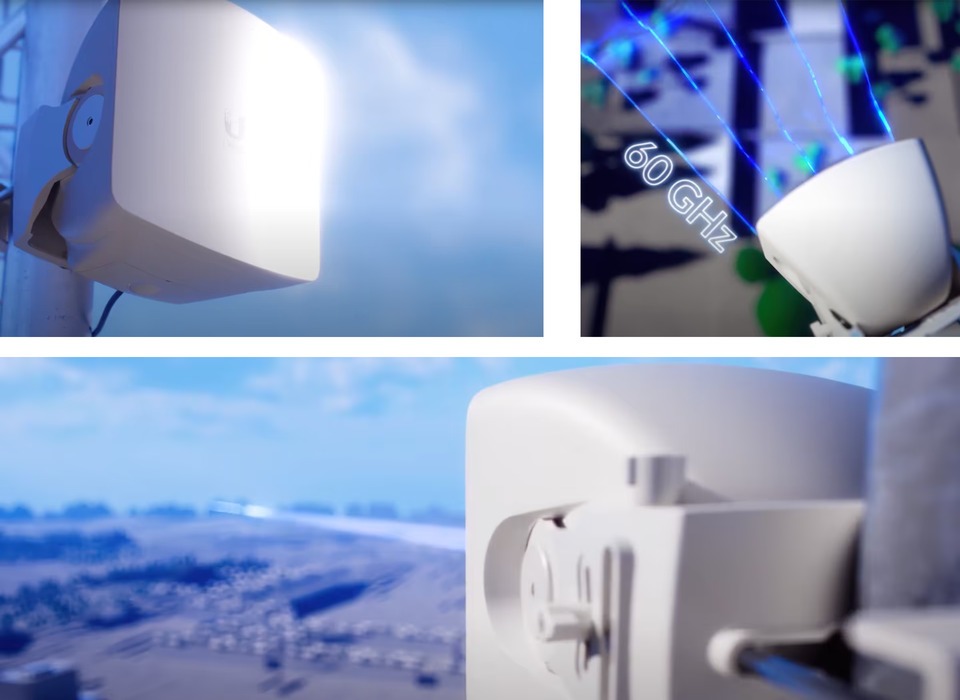

Ubiquiti Wave-AP 60GHz PtMP Access Point
Web ID: 43172
60 GHz PtMP access point powered by Wave Technology.
- Max. total throughput: 5.4 Gbps (2.7 Gbps duplex)
- 30 sector coverage
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
- (1) 2.5 GbE and (1) 10G SFP+ WAN ports
- 24* client capacity:
- Wave Pro (8 km link range)
- Wave Long-Range (8 km link range)
- Wave Nano (5 km link range)
- Wave Pico (1.3 km link range)
- Integrated GPS & Bluetooth
Manufacturer Warranty: 2 Year
Manufacturer PN: Wave-AP
Manufacturer Website
$1069
| Mechanical | |
|---|---|

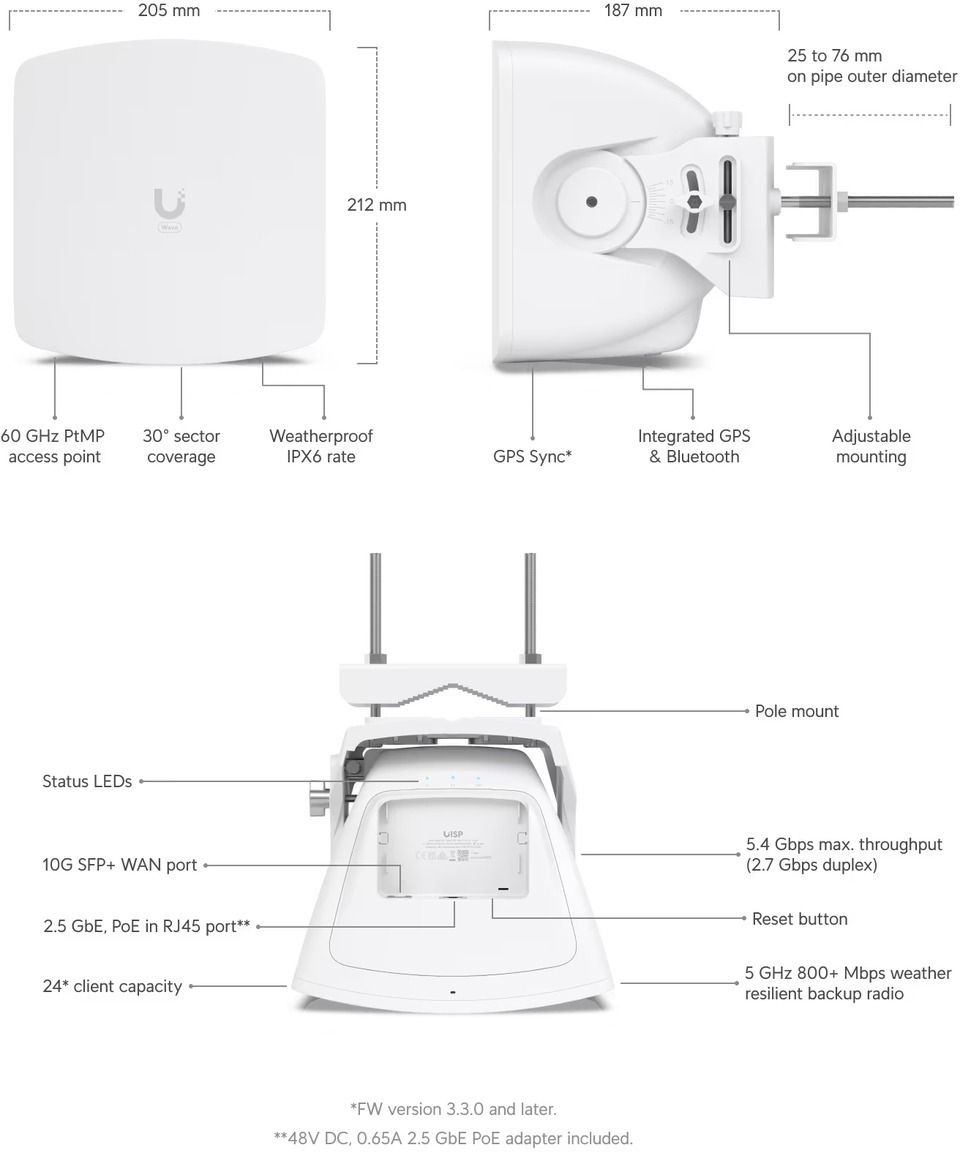

| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.1 lb) |
| Enclosure material | Aluminum alloy, UV stabilized polycarbonate |

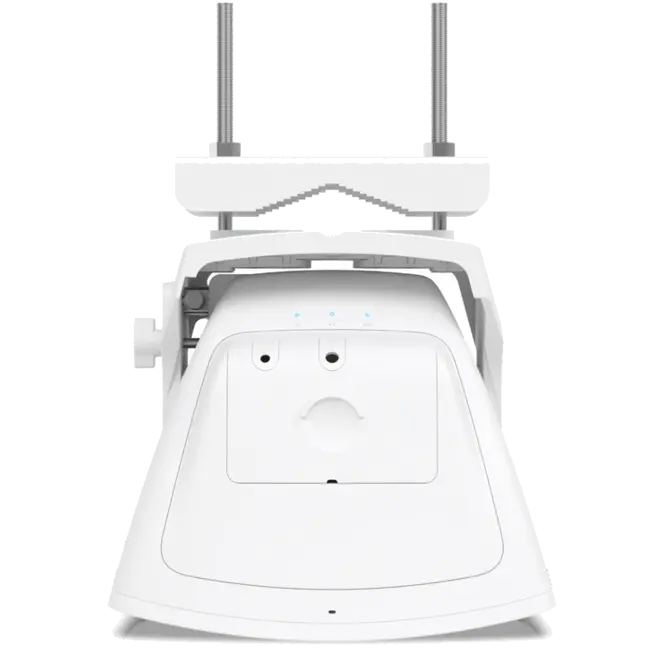

| Pole mount diameter | 25 to 76 mm (1 to 3") on pipe outer diameter |
| Wind loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) * Active only when SFP+ port is down. |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave technology |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. |
| Network | Bridge mode |
| Application requirements | UISP: Version 1.5.7 and later |
| System | |
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported clients count | 24* *FW version 3.3.0 and later. |
| Max. range | Connecting to a Wave Pro: up to 8 km Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km Connecting to a Wave Pico: up to 1.3 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz *FW version 3.3.0 and later. |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 24 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 30° Elevation: 3 dB 3° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 12 dBi |
| Cross-pol isolation | 10 dB |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 35° Elevation: 3 dB 60° |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
