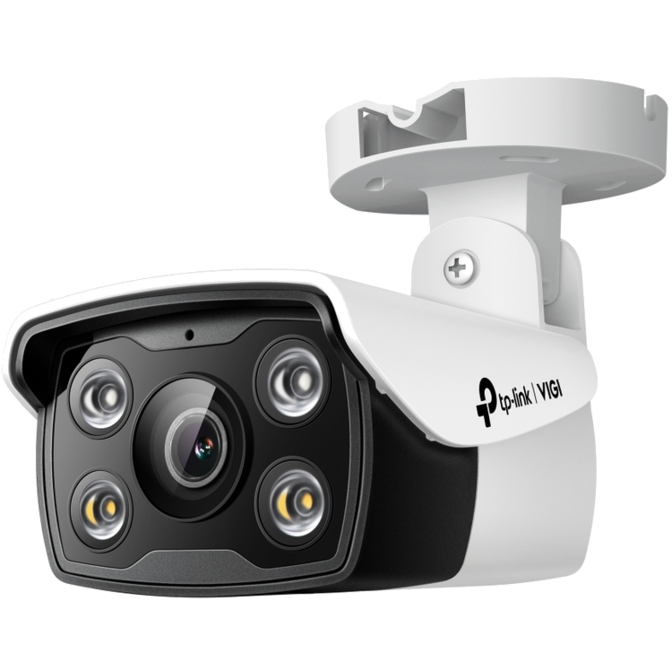

VIGI 4MP Outdoor Full-Colour Bullet Network Camera 6mm Lens VIGI C340(6mm)
Web ID: 40234
MP High Definition: The camera comes with 4MPmore than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enter an area you've set, or obstructs the camera. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: VIGI C340(6mm)
Manufacturer Website
$74
NETWORK | |
---|---|
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
GENERAL | |
---|---|
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories (Screws, Drywall Anchors, Hex Key) |
Operating Temperature | -30–60 °C |
Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
Dimensions( H X W X D ) | 78 × 70 × 174 mm |
Material | Plastic |
Weight | 195g |
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
CAMERA | |
---|---|
Image Sensor | 1/3” Progressive Scan CMOS |
Lens | Fixed focal lens (2.8 mm / 4 mm / 6 mm) |
Aperture | 2.8 mm: F1.6 4 mm: F1.6 6 mm: F1.6 |
Lens Mount | M12 |
Viewing Angle | (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122° (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° (6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59° |
Day/Night Mechanism | IR Cut Filter |
IR Working Distance | 30m |
Illumination Distance | 30 m |
Minimum Illumination | 0 lux with IR/white Light |
Weatherproof Rating | IP66 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
VIDEO/IMAGE | |
---|---|
Video Compression | Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264 |
Frame Rate & Resolutions | Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 |
Video Streaming | Main Stream Sub-Stream |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
SMART FEATURE-SET | |
---|---|
Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection |
Basic Event | Motion Detection, Camera Tampering Detection, Exception ( illegal login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
INTERFACES | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Audio Input | Built-in Microphone |
Audio Output | Built-in Speaker |
Button | Reset Button |
Slot | Micro SD card |
