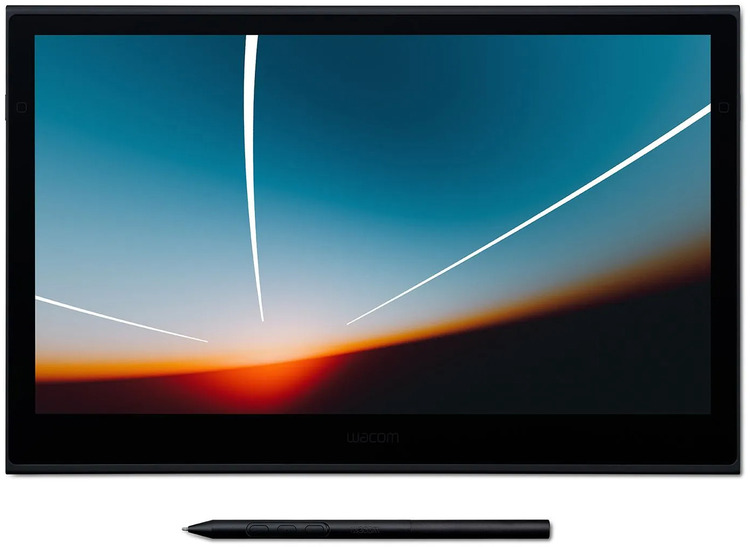

Wacom Movink 13 - OLED 13.3" Portable USB Interactive Display

Product Information

Product Type

Creative Pen Display

Model Code

DTH135K0

Product Weight

420g (14.8oz)

Product Dimensions

319.5 x 205.2 x 4 ~6.6 mm
(12.6 x 8.1 x 0.16 ~ 0.26 in)

Product Color

Black

Built-in Stand

n/a

Productivity Boosters

• 2 buttons for Power, OSD menu, ExpressKeys, Touch On/Off
• 2 Touch keys for ExpressKeys
• Touch on/off switch
• Dedicated pan, scroll, zoom, brush size
• Precision Mode
• Radial Menu
• Display Toggle
• On-screen controls
• Pen gestures

Power Input Voltage

PC USB PD port DC 5V 3A
AC Power Adaptor DC 9V 2.77A

Power Output Voltage

n/a

Storage Temperature and Humidity

Temperature: -10 to 60 deg. C
Humidity: 30 to 90%RH (non-condensing)
(Maximum storage humidity is 90% at a temperature of 45 deg. C, and maximum storage temperature is 60 deg. C at a humidity of 30%.)

Operating Temperature and Humidity

Temperature: 5 to 40 deg. C
Humidity: 30 to 80 % RH (non-condensing)

Security

n/a

Warranty

2 years

Pen & Touch Technology

Screen Size

13.3 inch

Active Area

294 x 165 mm (11.6 x 6.5 in)

Display Technology

OLED

Touch Technology

Projected capacitive

Multi-touch

Yes - 10 fingers

Display Resolution

1920 x 1080 pixels

Supported Resolution

• 640x480 @60Hz
• 720x480 @60Hz
• 720x576 @50Hz
• 800x600 @60Hz
• 1024x768 @60Hz
• 1280x720 @50/60Hz
• 1280x1024 @60Hz
• 1600x1200 @60Hz
• 1920x1080 @50/60Hz

Uniformity compensation function

n/a

Pixel Pitch

0.15300 (H) x 0.15300 (V) mm

Surface

AG (Anti-glare) glass + AF (Anti-fingerprint) coating

Brightness

350cd/m2 (typ)

Displayable Colors (maximum)

1.07 billion (Color depth: 10bit x RGB = 30bit)

Color Gamut Coverage Ratio

DCI-P3 100% (CIE 1931) (typ)
Adobe RGB 95% (CIE 1931) (typ)
Pantone^® Validated™ and Pantone^® SkinTone™
Validated certifications

Color Temperature, Custom Color

5000K/5700K/6500K/7500K/
9300K/DCI-P3

Aspect Ratio

16:9

Viewing Angle

170° (85° /85° ) H, 170° (85° /85° ) V (typ)

Contrast Ratio

100,000:1 (Typ)

Response Time

0.2 ms (typ)

Supported color profile

Native
AdobeRGB
DCI-P3
Rec709
Rec2020
Display P3
sRGB
EBU

Display quality

Each panel is produced under very stringent quality standards. Production techniques cannot guarantee an absolutely perfect TFT display. A small number of pixels are allowed to show a wrong color for some parts of the color spectrum.

Pen

Wacom Pro Pen 3 with Nib holder

Pen Technology

Electromagnetic resonance technology

Pen Pressure levels

8192 levels

Supported Pen Tilt Angle

60 degrees

Pen Resolution

5080 lpi

Pen Type

Pressure-sensitive, cordless, battery-free

Switches

3 side switches

Compatibility & Connectivity

Compatibility

• PC: Windows^® 10 or later (Latest service pack/ build)
• Mac: macOS 12 or later (Latest update)
• Android*: Android 8.0 and above
• ChromeOS**: The latest version of ChromeOS

*Display mode requires manufacturer specific OS support. See Wacom support for display mode compatible devices.

**Due to ChromeOS specification, some pen and tablet features may not be available. See https://support.wacom.com/  for more details.

** This product works with devices capable of running the latest version of ChromeOS. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook is a trademark of Google  LLC.  ChromeOS may not be available in certain regions/countries.

**Pen must be used with the tablet to function with ChromeOS. Some Chromebook devices require a USB-C adapter.

**Android, Chromebook are trademarks of Google LLC. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

Hardware Requirements

USB-C port with DisplayPort™ Alt Mode or Thunderbolt 3 or later

I/O connectors

2 x USB-C

Wireless connectivity

n/a

Source video signal

DisplayPort

Output video connector

n/a

Security Lock Slot

n/a

What’s Included & Optional Accessories

What's Included

• 1 x Wacom Movink 13
• 1 x USB-C to C cable (1.0m)
• 1 x Wacom Pro Pen 3 with Nib holder
• 1 x Quick Start Guide
• 1 x Important Product Information document
• 3 x Replacement nibs (1 x Standard, 2 x Felt)
