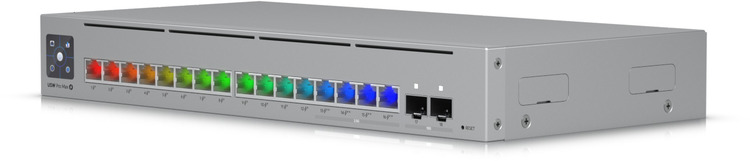

16-Port Ubiquiti USW-Pro-Max-16-PoE Layer 3 Etherlighting Switch with 2.5GbE and PoE++
Web ID: 43049
A 16-port, Layer 3 Etherlighting switch with 2.5 GbE, PoE++ output, and versatile mounting options.
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability

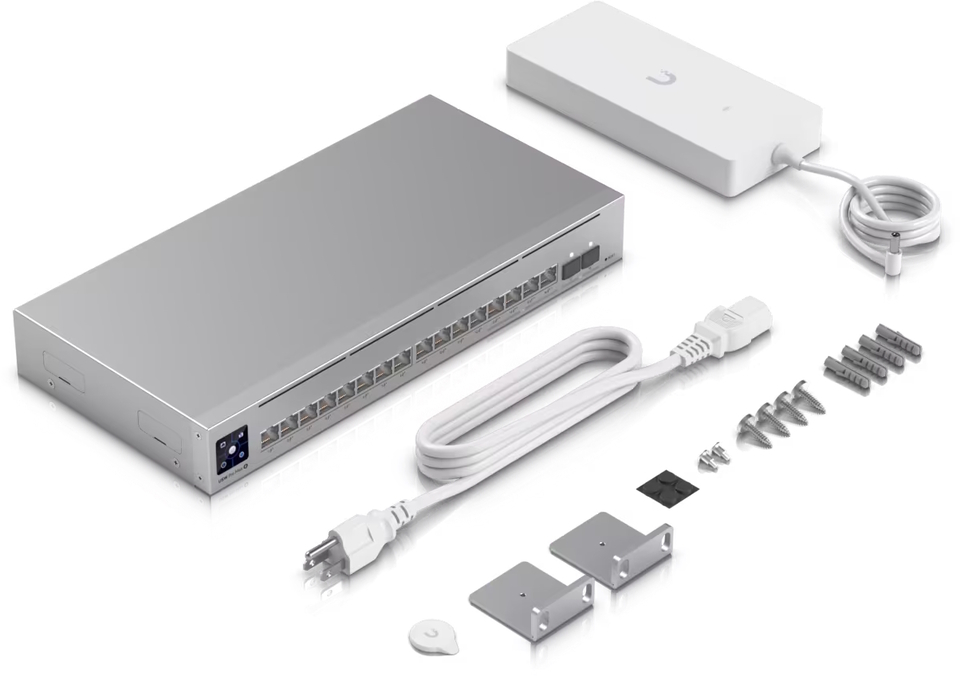

- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
Manufacturer Warranty: 2 Year
Manufacturer PN: USW-Pro-Max-16-PoE
Manufacturer Website
$809
-

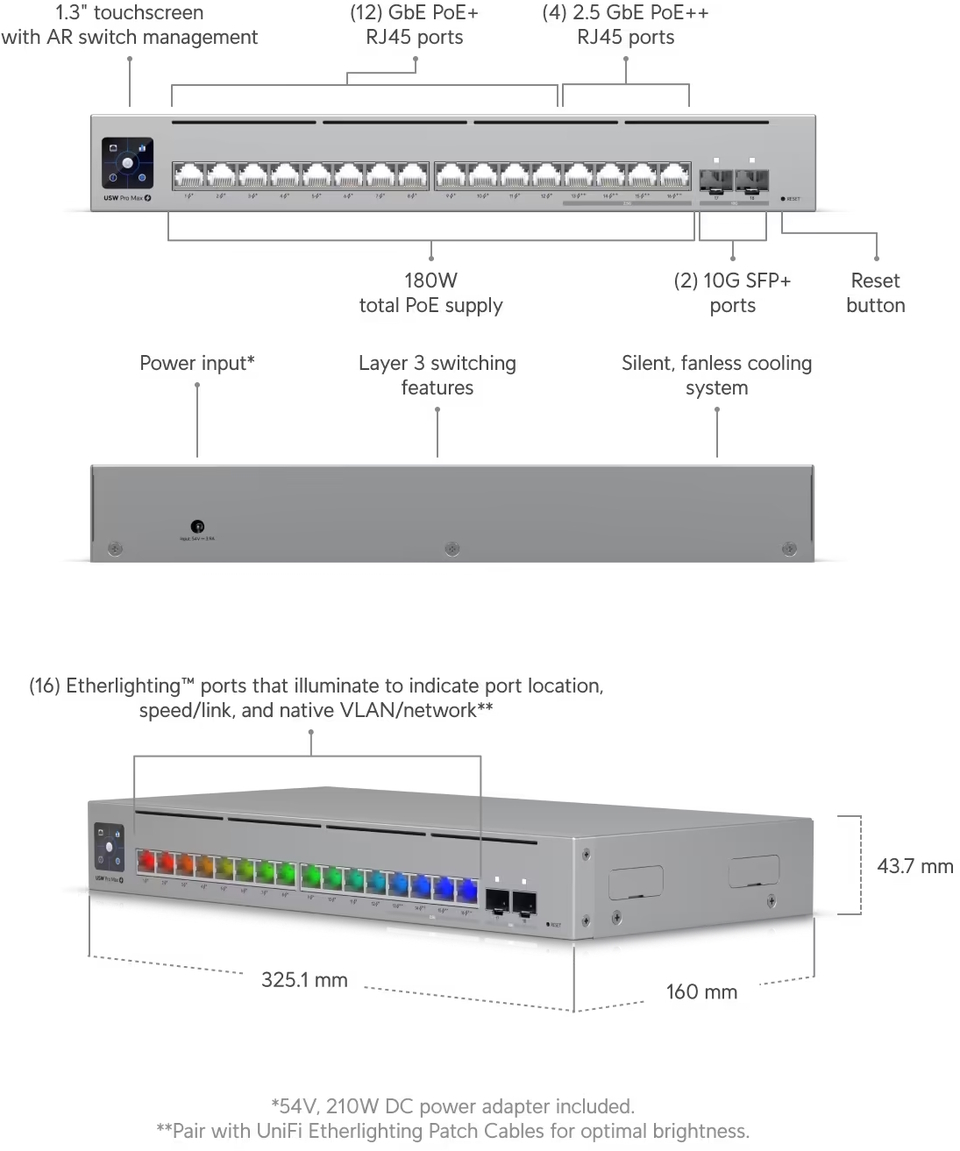

| Mechanical | |
|---|---|
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 42 Gbps |
| Switching capacity | 84 Gbps |
| Forwarding rate | 62.496 Mpps |
| Power method | DC adapter |
| Power supply | 54V, 210W |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 180W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
