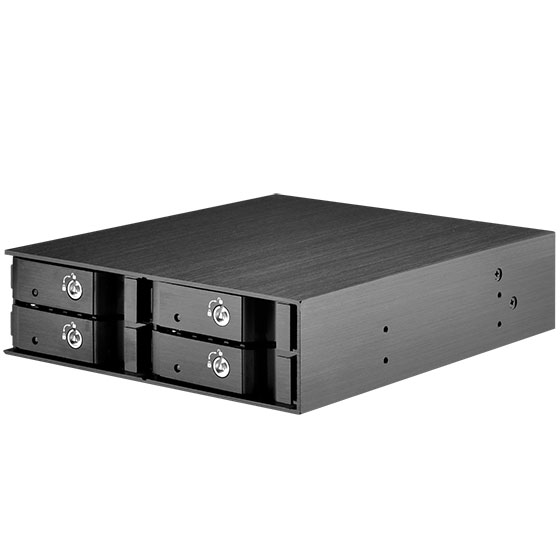

SilverStone FS204B 5.25 To 2.5 Hot Swap Drive Bay
Web ID: 26048
1x5.25" device bay to 4x2.5" SAS/SATA 6.0 Gbits hot-swap HDD(thickness up to 15mm) tray cage ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-FS204B
GTIN: 844761012403
![]() | ? Fits four 2.5" SAS/SATA 6Gbit/s drives in one 5.25" device bay ? Individual metal key lock for each drive for extra security ? All aluminum body with beautiful hairline brushed finish ? Independent drive status LED ? Built-in cooling fan for excellent heat dissipation ? Compatible with all 2.5" drives up to 15mm thickness ? Fully supports SATA Hot-Swap function |
---|---|
To accommodate PC user??s need for more storage flexibility and convenience, SilverStone created a line of front bay storage products called the FS series. These are 5.25" bay chassis designed to fit 3.5" or 2.5" SAS/SATA drives. Equipped with release handle made out of finely brushed aluminum, hot-swapping drives is extremely quick and comfortable. Built-in cooling fan behind the chassis ensures drive and run cool for extended life while individual LED indicators let user easily monitor drive status in one glance. For security, each drive tray also has metal key lock. For those that need to upgrade their current PC with more drives, SilverStone??s FS series is a great choice. | |
Model No. |
SST-FS204B
|
Color | Black |
Material | Aluminum body, tray, and front bezel |
Form factor | 5.25" drive bay x 1 |
Drive support | 4 x 2.5" SAS*/SATA HDD or SSD |
Transfer rate | Up to 6 Gbit/s (dependent on drive speed) |
Host interface | 7-Pin SATA connector x 4 or SAS* primary channel connection |
Power connector | SATA 15-Pin x 1 |
Drive door security | Triangle metal key lock design with guiding rail & anti-vibration |
LED indicator | Power On : Blue Fan Failure : Red blinking (slower) Over heating : Red blinking (faster) |
Number of key | 2 |
Cooling fan | 40mm fan x 2, 3500rpm |
Net weight | 0.67kg |
Dimension | 146mm (W) x 41.7mm (H) x 180mm (D) 5.75" (W) x 1.64" (H) x 7.09" (D) |
Remark |
*Your system must have SAS controller if you want to use SAS HDD *Hard drive capacity and RAID support is dependent on SAS or SATA controller used |
