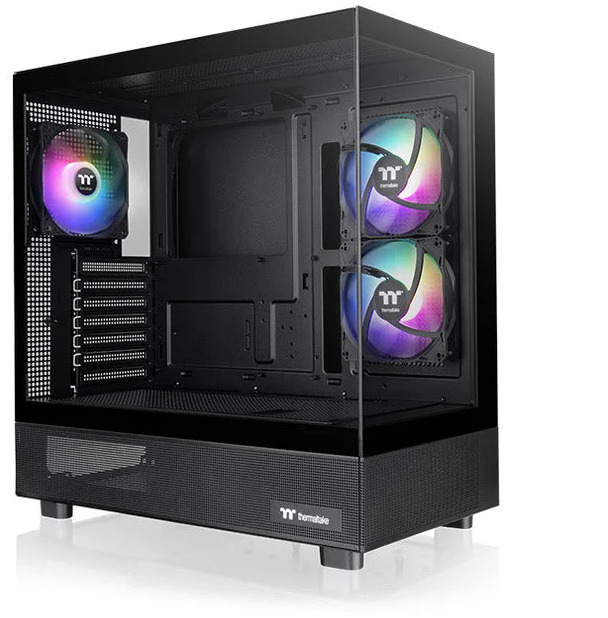

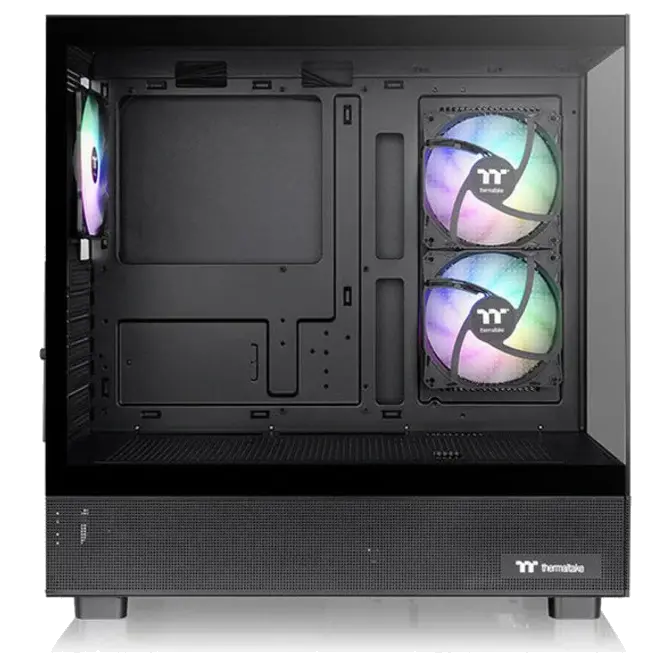

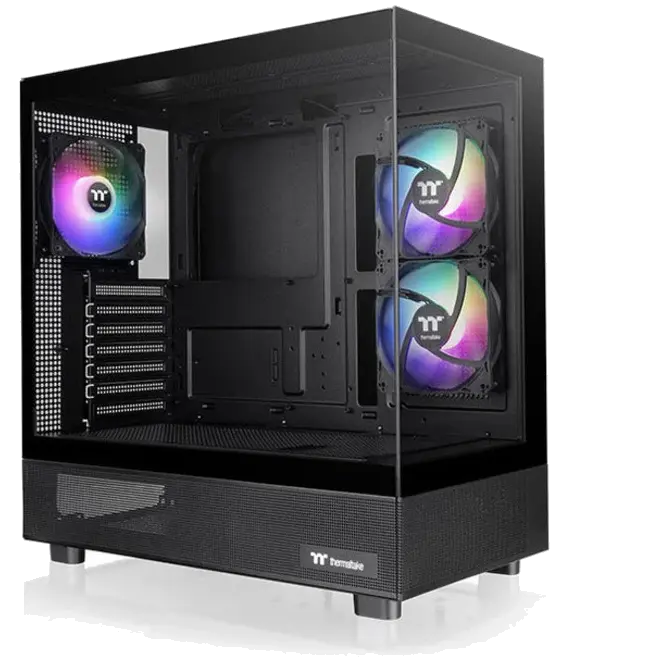

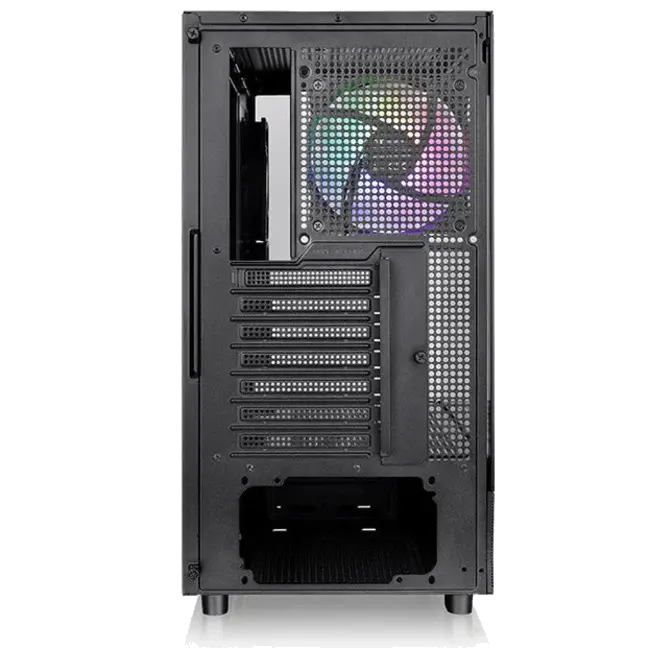

Thermaltake View 270 Plus TG ARGB Mid Tower Chassis
Web ID: 44118
Case Type: ATX Case
Form Factor: ATX (PSU) || E-ATX
Colour: Black
Cooler Clearance: 180mm (Cooler Clearance)
GPU Max Length: 420mm Max GPU Length
Radiator Size: 120mm Radiator || 240mm Radiator || 360mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: USB 3.2 Type-C || USB 3.0
Designed For: Gaming
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-1Y7-00M1WN-01
Manufacturer Website
$99
| P/N | CA-1Y7-00M1WN-01 |
|---|---|
| Series | View |
| Case Type | Mid Tower |
| Dimensions | 456 x 230 x 454 mm (18 x 9.1 x 17.9 inch) |
| Weight | 6.35 kg / 14 lbs. |
| Side Panel | Tempered Glass x 2 |
| Color | Black |
| Material | SPCC |
| Cooling System | Right(intake): _x000B_120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): _x000B_ 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm _x000B_Right (M/B Side): 2 x 120mm, 1 x 120mm_x000B_ Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Clearance | CPU cooler max height: 180mm_x000B_ VGA max length: 420mm PSU max length: 220mm |
