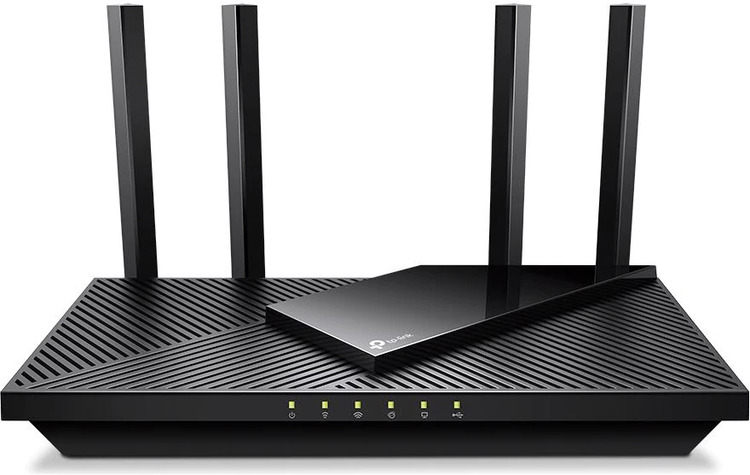

TP-Link Archer AX55 Pro Dual-Band Wi-Fi 6 Router
Web ID: 34774
Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming and downloading, all at the same time.
2.5G Multi-Gigabit Port: 1 2.5 Gbps WAN/LAN port + 1 1 Gbps WAN/LAN port + 3 Gigabit LAN ports + 1 USB 3.0 port ensure max flexibility and boosted throughput.
Maximised Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.
Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer AX55 Pro
GTIN: 4897098686805
Manufacturer Website
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000 • 5 GHz: 2402 Mbps (802.11ax, HE160) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses
• 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High
• Dual-Band Allocate devices to different bands for optimal performance • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients • Airtime Fairness Improves network efficiency by limiting excessive occupation • DFS Access an extra band to reduce congestion • 4 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
| Power | • 12 V/ 2 A (US Version) • 12 V/ 1.5 A (EU Version) |
| SECURITY | |
|---|---|
| WiFi Encryption | • WPA3* • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls
• Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | • CE: <20dBm(2.4GHz) <23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz) <30dBm (5.47GHz~5.725GHz) • FCC: <30dBm (2.4GHz) <30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz) <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz) |
| WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm • 5 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm, 11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Package Contents | • Wi-Fi Router Archer AX55 Pro • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
