Extend Dual Band Wi-Fi across Your Home
AC1200 Mesh Wi-Fi Range Extender
RE300
Web ID: 25796
Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones. Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage. Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps)*1 for more stable wireless experience. Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
Manufacturer Warranty: 3 Year
Manufacturer PN: RE300
GTIN: 6935364084608
Manufacturer Website
AC1200 Mesh Wi-Fi Range Extender
RE300
Can’t get Wi-Fi in your
bedroom?
Add a Wi-Fi Range
Extender
Lose connection while
walking around the house?
OneMesh™ with
Smart Roaming
Network buffering
all the time?
AC1200 Dual
Band Speed
Network setup too
complicated?
Easy Setup with
Only Two Steps
RE300 wirelessly connects to your Wi-Fi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz*1, put strong, fast Wi-Fi in every room and say goodbye to dead zones.
OneMesh™ is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.
Learn More about OneMesh™Uninterrupted streaming when moving around your home*3
No more switching Wi-Fi network names
OneMesh™ Router + OneMesh™ Range Extender
Manage the whole unified network all in one Tether app
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh™ resolves your dilemma.
5 GHz
867 Mbps2.4 GHz
300 MbpsUP TO
32
devices
The RE300 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 867 Mbps dual bands*1.
Without Adaptive Path Selection
Adaptive Path Selection
2.4 GHz 5 GHz 2.4GHz 5 GHzAdaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
100%
Boosted Speed
2.4 GHz
5 GHz
2.4 GHz
5 GHz
Use both Wi-Fi bands to establish one super-high-speed connection, ideal for HD streaming & gaming.
Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE300 to connect to the network.
Step 2: Once connected, place RE300 to the best location—without reconfiguration.
Notes: Please connect the extender to the router via the Tether app or Web UI if your router doesn’t support WPS.

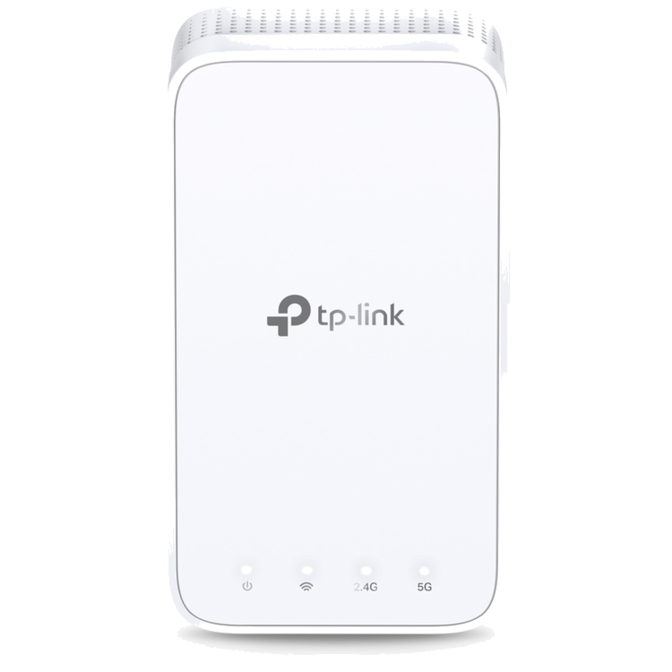

The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your Wi-Fi.
White
Strong signal
Weak signal
(Too far away from the router)
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
HARDWARE FEATURES | |
---|---|
Plug Type | AU |
Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |

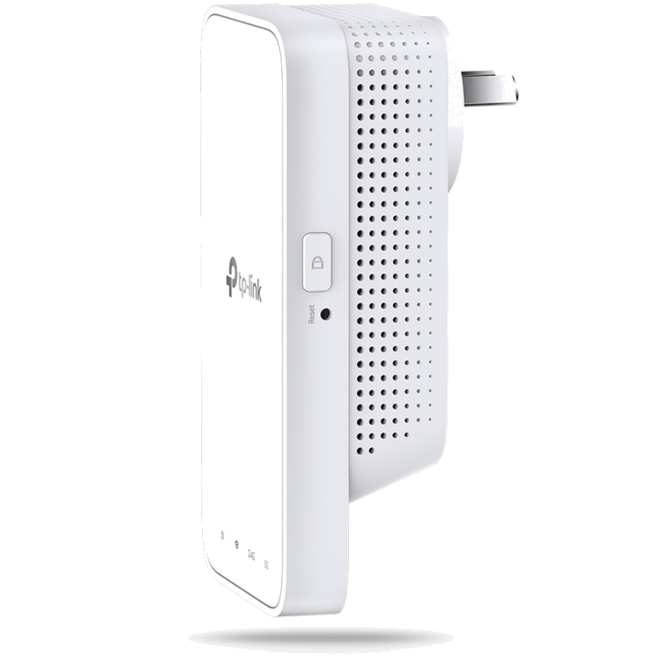

Button | WPS Button, Reset Button |
Power Consumption | 7.3W(max power consumption) |
Dimensions ( W x D x H ) | 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm) |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4GHz & 5GHz(11ac) |
Signal Rate | 5 GHz:Up to 867 Mbps 2.4 GHz:Up to 300 Mpbs |
Reception Sensitivity | 5GHz: 11a 6Mbps:-91dBm@10% PER 11a 54Mbps: -74dBm@10% PER 11ac HT20 mcs8: -68dBm@10% PER 11ac HT40 mcs9: -63dBm@10% PER 11ac HT80 mcs9: -59dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER |
Wireless Modes | |
Wireless Functions | Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control LED Control Domain Login Function |
Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK |
Transmission Power | <17dBm(2.4GHz) <17dBm(5GHz) |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | ? AC1200 OneMesh Wi-Fi Range Extender RE300 ? Quick Installation Guide |
Box Dimensions (W X D X H) | 6.2 x 4.0 x 3.5 in. (156.5 x 101.5 x 89 mm) |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
