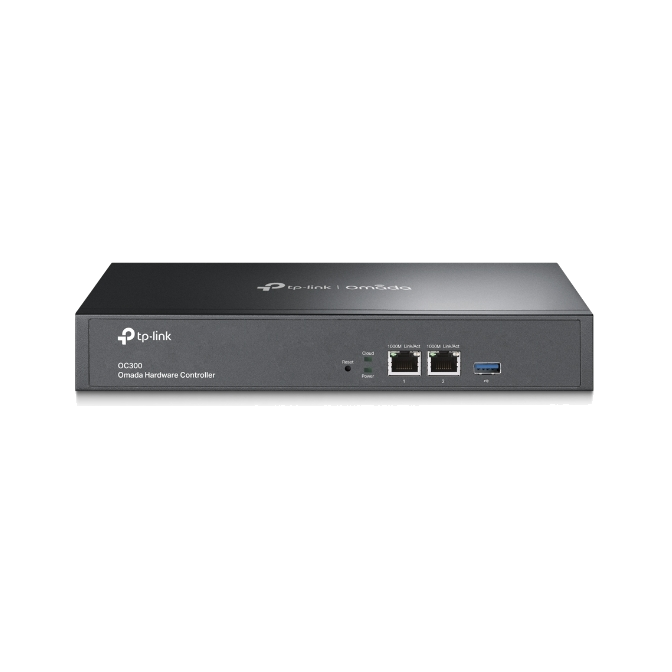

TP-Link OC300 Omada Hardware Controller
Web ID: 30858
Centralised management for up to 500 Omada access points, JetStream switches, and SafeStream routers.
Cloud access to manage from anywhere, anytime.
Locally monitor and manage devices with the ultimate security and stability.
The Omada app for convenient management.
Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.
Batch management, multi-site management, and remote firmware updates benefit network maintenance.
The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.
Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Manufacturer Warranty: 1 Year
Manufacturer PN: OC300
GTIN: 6935364089863
Manufacturer Website
| HARDWARE FEATURES | |
|---|---|
| Interface | • 2× 10/100/1000 Mbps Ethernet Ports • 1× USB 3.0 Port |
| Power Supply | 100–240 V~50/60 Hz, 0.6 A |
| Dimensions | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Up to 500 Omada access points, JetStream switches, and SafeStream routers* • Up to 15,000 clients *Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada Hardware Controller OC300 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: 0–50 ? (32–122 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
