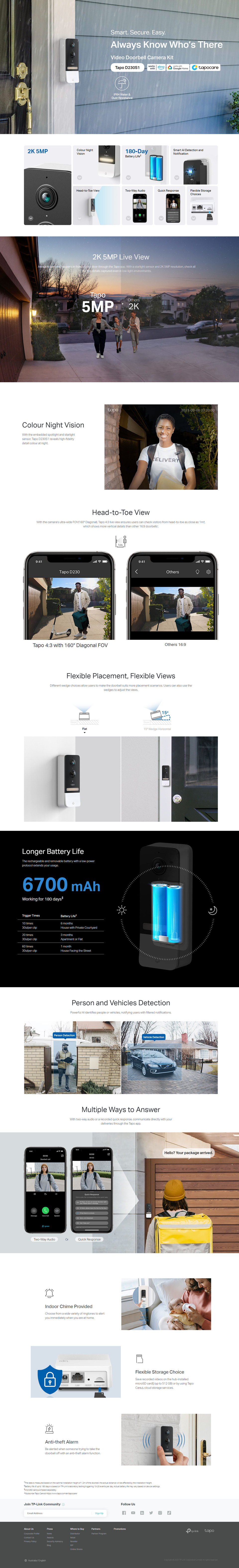

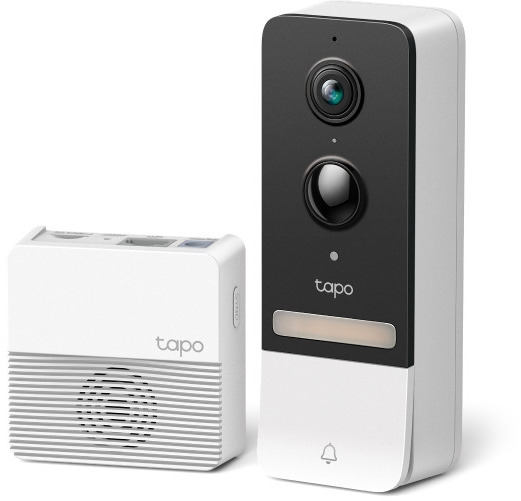

TP-Link Tapo D230S1 Smart Battery Video Doorbell
Web ID: 36964
2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.
Head-to-Toe View: With the cameras ultra-wide FOV(160 Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m, which shows more vertical details than other 16:9 doorbells'.
Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.
Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
CASH PRICE
Manufacturer Warranty: 1 Year
Manufacturer PN: D230S1
Manufacturer Website
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7“ |
| Resolution | 2K 5MP (2560 × 1920px) |
| Lens | F/NO: 2.1 |
| Viewing Angle | 160° Diagonal |
| Night Vision | 850 nm IR LED up to 25 ft |
| Weatherproof Rating | IP64 |
| VIDEO | |
|---|---|
| Frame Rate | 15 fps |
| Video Streaming | 2K 5MP |
| Audio Compression | G.711 |
| Video Compression | H.264 |
| AUDIO | |
|---|---|
| Audio Communication | 2-way audio |
| Audio Input & Output: | Built-in microphone and speaker |
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.11b/g/n, 2.4 GHz |
| Security | 128 bit AES encryption with SSL/TLS |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Frequency | 2.4 GHz |
| Wireless Security | WPA/WPA2-PSK |
| ACTIVITY NOTIFICATIONS | |
|---|---|
| Input Trigger | Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection. |
| Output Notification | Notification,Snapshot(Tapo Care),Clips(Tapo Care). |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | -20?~45?(-4°F ~113 °F ) |
| Storage Temperature | -20?~45?(-4°F ~113 °F ) |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 5%~90%RH, Non-condensing |
| HARDWARE | |
|---|---|
| Button | Doorbell Button: Reset/SYNC/Anit-Theft Button Hub Button: Reset Button; SYNC Button |
| Indicator LED | Doorbell Indicator LED: System LED Hub Indicator LED: System LED |
| Adapter Input | Doorbell Adapter Input: 100-240V, 50/60Hz Hub Adapter Input: 100-240V, 50/60Hz, 0.3A |
| Adapter Output | Doorbell Adapter Output: 5.0V, 1.0A Hub Adapter Output: 9.0V, 0.85A |
| Product Dimensions (W x D x H) | Camera Dimensions (Lx W x H): 5.7*0.21*1.3in (146*54.5*35.5mm) · Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in (71.45*71.45*31.25mm) |
